Genesis Physics Speakers:
Model Identification

Tap the photo to reach more detailed information about the product, and the parts I make to repair/upgrade it.

(There is a button for donations at the very bottom of this file.)

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

1975 to late 1970s

These are the "green foam" speakers, the original Genesis line.

Genesis I
21" x 12" x 8.6"
More
Info
Order
Parts
The GI is an eight-inch two-way system.

It was available in walnut vinyl or real oak veneer.

Genesis II (2)
26.5" x 14.5" x 10.5"
More
Info
Order
Parts
The GII is an eight-inch two-way system with a ten-inch passive radiator.

The model number was changed to "2" eventually, to avoid confusion with "eleven".

It was available in walnut vinyl or real oak veneer.

Genesis III (3)
37.5" x 14.5" x 12"
More
Info
Order
Parts
The GIII is an eight-inch three-way system with a ten-inch passive radiator.

The model number was changed to "3" eventually, to avoid confusion with "eleventy-one". (This is not true.)

It was available in real walnut or oak veneer.

Genesis V-6
16.5" x 10.8" x 7"
More
Info
Order
Parts
The GV-6 is a six-inch two-way, vented system.

It was available in walnut vinyl and real oak veneer.

Genesis I+
22" x 12.5" x 9"
More
Info
Order
Parts
The GI+ is an eight-inch two-way system.

It was available in walnut vinyl and real oak veneer.

Genesis II+ (2+)
33" x 14.5" x 10.5"
More
Info
Order
Parts
The GII+, or 2+, is an eight-inch two-way system with a ten-inch passive radiator.

It was available in real walnut or oak veneer.

Genesis III+ (3+)
37.5" x 14.5" x 12"
More
Info
Order
Parts
The GIII+, or 3+, is an eight-inch three-way system with a ten-inch passive radiator.

It was basically identical to the Genesis III.

It was available in real walnut or oak veneer.

Genesis 6
18" x 10" x 7"
More
Info
Order
Parts
The G6 is a six-inch two-way system.

It was available in walnut vinyl.

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Late 1970s to early 1980s

These rectangular boxes featured drivers with grey foam, and black grill cloth.

Genesis Basic Loudspeaker
16.5" x 10.3" x 6.4"
More
Info
Order
Parts
The GBL is a six-inch two-way system.

It was available in walnut vinyl.

Genesis 1
19" x 10.5" x 7.5"
More
Info
Order
Parts
The G1 is an eight-inch two-way system.

It was available in walnut vinyl.

Genesis 10
23.1" x 12.4" x 9.9"
More
Info
Order
Parts
The G10 is an eight-inch two-way system.

It was available in walnut vinyl.

Genesis 20
27" x 14.5" x 10.5"
More
Info
Order
Parts
The G20 is an eight-inch two-way system with a ten-inch passive radiator.

It was available in walnut vinyl.

Genesis 110
27.5" x 14" x 10.5"
More
Info
Order
Parts
The G110 is a ten-inch two-way system.

I've tried scanning the brochure several times. Every time, the results suck.

It was available in walnut vinyl.

Genesis 210
31" x 16.5" x 10.5"
More
Info
Order
Parts
The G210 is an eight-inch two-way system with a ten-inch passive radiator.

It was available in walnut vinyl, with a few in oak veneer.

Genesis 320
34" x 18.3" x 10.5"
More
Info
Order
Parts
The G320 is an eight-inch three-way system with two woofers.

It was available in walnut vinyl, and a few were made in oak veneer.

Genesis 410
30.5" x 15.3" x 15"
More
Info
Order
Parts
The G410 is a ten-inch three-way system with a ten-inch passive radiator.

The woofer and passive radiator featured butyl rubber surrounds.

It was made in real walnut veneer, with a few in oak veneer.

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Car speakers

The automotive line was sold at the same general time as the above indoor speakers.

Genesis AM135
8.6" x 5.9"
More
Info
Order
Parts
The AM135 is a five-inch two-way plate-mounted system.

They were black.

Genesis AM165
9.8" x 7"
More
Info
Order
Parts
The AM165 is a six-inch two-way plate-mounted system.

They were black.

Genesis AS165
9.8" x 7"
More
Info
Order
Parts
The AS165 is a six-inch two-way separates system.

The tweeter module was also sold seperately, and had a built-in crossover.

They were black.

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

1984 to 1987

While still using similar parts, these speakers sported distinctive eight-sided beveled cabinets.

There were two series, which in some ways were quite different, but the cabinet dimensions were identical. Also, some Series 2 models were made in very small quantities. So I combined their detailed information files, and will combine them here.

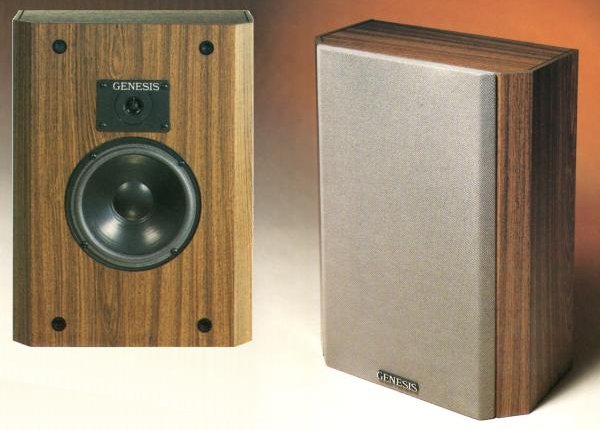

Genesis 7
16" x 11.8" x 5.6"
More
Info
Order
Parts:
Original
Series 2
The G7 and 7/2 are six-inch two-way, rear-vented systems.

It was available in teak vinyl. Series 2 was oak vinyl.

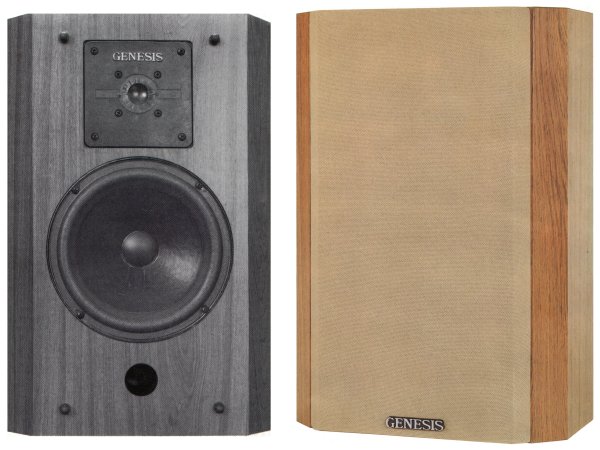

Genesis 11
19" x 12.3" x 7.5"
More
Info
Order
Parts:
Original
Series 2
The G11 and 11/2 are eight-inch two-way, vented systems.

It was available in teak vinyl. Series 2 was oak vinyl.

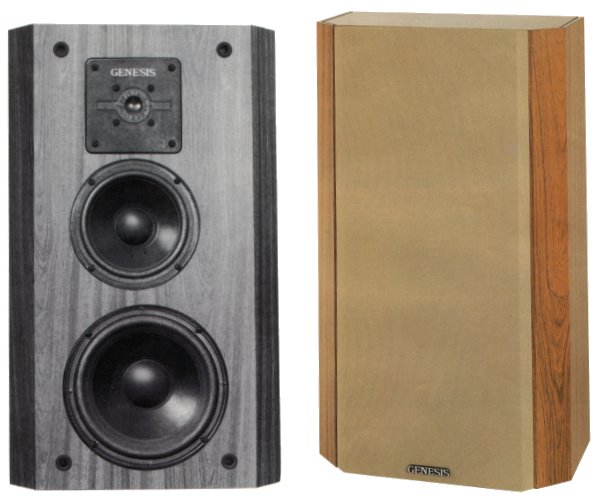

Genesis 22
23.5" x 14" x 7.6"
More
Info
Order
Parts:
Original
Series 2
The G22 is a six-inch two-way system with an eight-inch passive radiator. The G22/2 is an eight-inch two-way system, with a rear-mounted ten-inch passive radiator.

It was available in teak vinyl. Series 2 was oak vinyl.

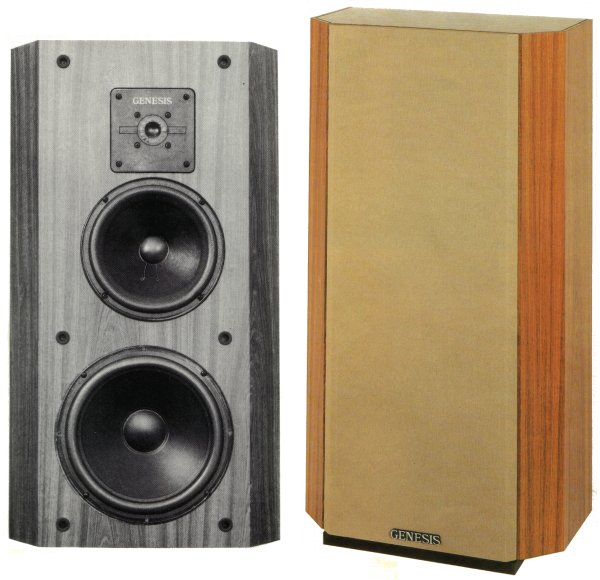

Genesis 33
29" x 16" x 8"
More
Info
Order
Parts:
Original
Series 2
The G33 and 33/2 are eight-inch two-way systems with a ten-inch passive radiator.

It was available in teak vinyl. Series 2 was never really made, although there were a few oak veneer examples.

Genesis 44
32.5" x 18" x 9"
More
Info
Order
Parts:
Original
Series 2
The G44 and 44/2 are eight-inch two-way systems with a ten-inch passive radiator.

It was available in teak vinyl and real oak veneer, with Series 2 only being the latter.

Genesis 66
44" x 18" x 12"
More
Info
Order
Parts:
Original
Series 2
The G66 and 66/2 are eight-inch three-way rear-vented systems with dual woofers.

It was available in real oak veneer, with a very small number in walnut veneer.

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987

Green foam:
1975 - 1980
Grey foam:
1979 - 1985
Automobile
speakers
Beveled boxes:
1984-1987
