Genesis Physics Speakers:
AM 135 Information

specifications - crossover schematic - order parts


photo/top - crossover schematic - order parts

Dimensions8-5/8" x 5-7/8" x 1" above, 1-1/4" below
Tweeter: "H50C" 1" concave domePRO 002
Woofer: "L135A" 4.5" WooferPRO 065
Crossover: 2000 Hz
Sensitivity91 dB, 1w at 1m
Frequency response60 Hz to 20 kHz
* Bass response below 100 Hz depends on enclosed air space
Power5 - 60 watts/ch
Impedance8 ohms

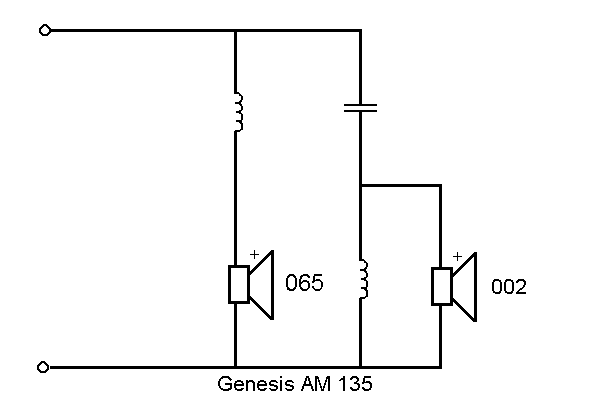

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
