The long-awaited HUMAN 81 DK is now available.
Best viewed in "landscape" mode.

Genesis Physics Speakers:
Model I Information

(build a pair yourself using HUMAN parts!)

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions21" x 12" x 8-5/8"
Weight24 lbs
Finishwalnut vinyl or oak veneer
Tweeter: 1" concave domePRO 002 MG$73.00
Woofer: "L200A" 8"PRO 001$79.00
Crossover: 1800 HzACC 004 B$43.00
Complete rebuild kitK-81G$372.00 / pair
Sensitivity88.5 dB, 1w at 1m
Frequency response45 Hz to 20 kHz
Power10 - 50 watts/ch
Impedance8 ohms

(A little note about the lovely green foam)

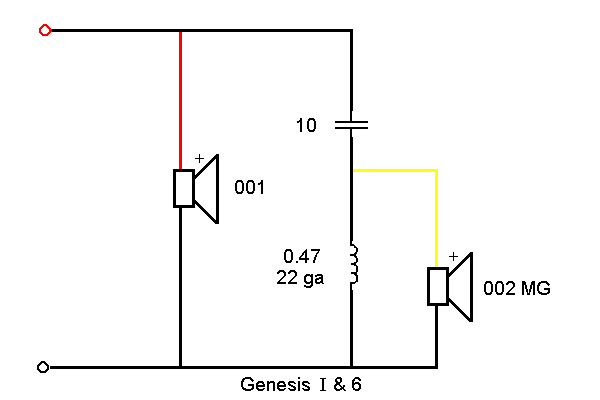

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
