The long-awaited HUMAN 81 DK is now available.
Best viewed in "landscape" mode.

Genesis Physics Speakers:
Model 1+ Information

(build a pair yourself using HUMAN parts!)

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions22" x 12.5" x 9"
Weight28 lbs
Finishwalnut vinyl or oak veneer
Tweeter: "H50B" 1" concave domePRO 002 MG$73.00
Woofer: "L200B" 8"PRO 001$79.00
Crossover: 1800 HzACC 004 B$43.00
Complete rebuild kitK-81G$363.00 / pair
Frequency response38 Hz to 20 kHz
Power15-100 watts/ch
Impedance8 ohms

(A little note about the lovely green foam)

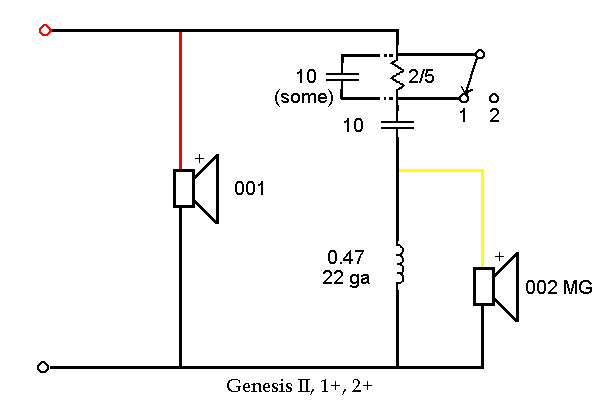

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
