Genesis Physics Speakers:
Model V-6 Information

specifications - crossover schematic - order parts

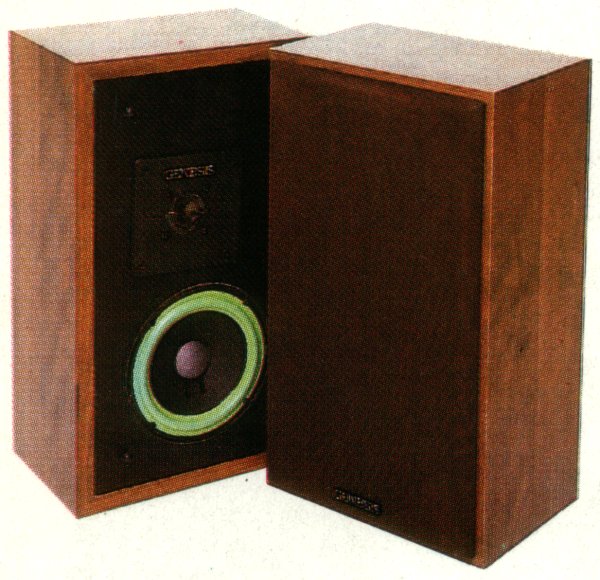

(original brochure photo)

(photo courtesy of Anthony D'Alessandro)

Specifications

photo/top - crossover schematic - order parts

Dimensions18-1/2" x 10-3/4" x 7"
Weight18-3/4 lbs
Finishwalnut vinyl or oak veneer
Tweeter: 1" concave dome, "H50A" or "H50B"PRO 002 MG$73.00
Woofer: "L165A" 6"PRO 007$76.00
Crossover: 1800 HzACC 004 E$47.00
Sensitivity89 dB, 1w at 1m
Frequency response52 Hz to 20 kHz
Power10 - 75 watts/ch
Impedance8 ohms

(A little note about the lovely green foam)

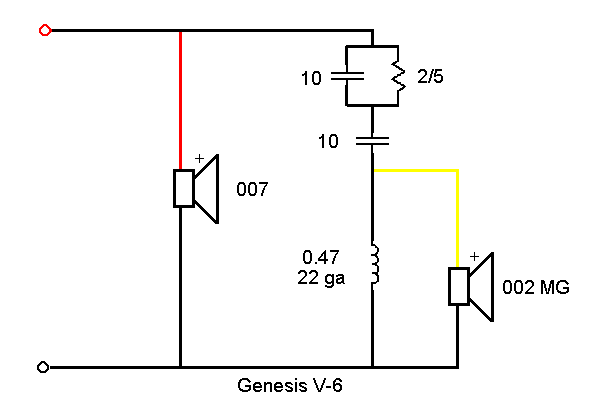

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
