Genesis Physics Speakers:
Model 44 Information

specs - crossover schematic - stand - order parts: Original or Series 2

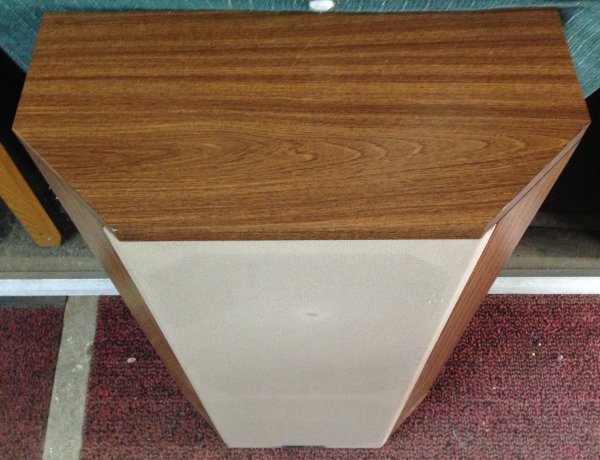

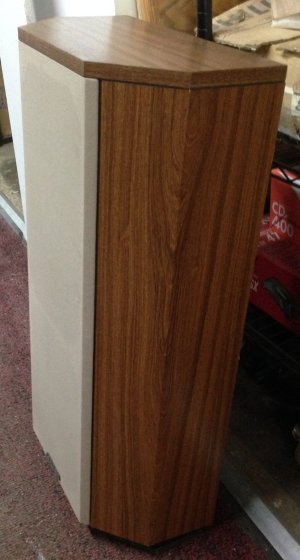

(Above and right: The typical teak vinyl finish.
Below: oak veneer finish, with original series parts.)

Specifications

photo/top - crossover schematic - stand - order parts: Original or Series 2

Dimensions32.5"
Width18"
Depth9"
Weight42 lbs
Finishteak vinyl or oak veneer

Original:

Tweeter: 1" modified dome ("STG")PRO 002 MG$61.00
Woofer: 8" treated paper cone ("SW10P")PRO 005$75.00
Passive radiator: 10" treated paper ("SP5P")PRO 014$51.00
Complete rebuild kitK-8110G$426.00 / pair
(Slightly more for original crossover configuration)
Crossover frequency1100 Hz
Sensitivity, 1w at 1m88 dB
Frequency response25 Hz to 25 kHz
Recommended amplifier power30 - 350 "wideband"
Impedance6 ohms

Series 2:
(very few made)

Tweeter: 1" concave aluminum dome ("STL")PRO 002 MG$61.00
Woofer: 8" polypropylene cone ("GTX205F")PRO 009$75.00
Passive radiator: 10" flat, foam-facedPRO 014$51.00
Complete rebuild kitK-8110G$426.00 / pair
Crossover frequency1500 Hz
Sensitivity, 1w at 1m91 dB
Frequency response34 Hz to 25 kHz
Recommended amplifier power15 - 150
Impedance5 ohms

Crossover schematic

photo/top - specifications - stand - order parts: Original or Series 2
Key to Crossover Symbols and Component Values (in a new window)

specs - crossover schematic - order parts: Original or Series 2

Stand

The Genesis 44 was shipped with a simple base or stand that tilted it back a bit. This was a generally good idea. It time-aligned the two active drivers somewhat, and also broke the speaker's parallels with the room boundaries. However, in some rooms they sounded better without it.

I recently had a chance to get a close look at one, after all these years, so I took some quick measurements and photos for people seeking to make their own.

It is an irregular octagon, cut out of an 18" by 9-1/2" rectangular piece of 3/4" particle board. That length and width are cut down symmetrically to 12-5/8" and 4-3/4", respectively. I did not measure the angle resulting from that, or the length of the four new sides.

The cleat at the front is 11-3/4" long, 3/4" thick, and about 1-1/32" tall in the front and 7/8" in the back.

It is held in place with four #10 fully-threaded wood screws, which were, if I recall correctly, 2-1/2" long in the front, going through the cleat, and 1-1/2" in the rear, lining up with pilot drilled holes in the cabinet.

The stands had four simple hard rubber feet. I do not remember if they were nail-in types or stuck in place with glue.

* * *
