Genesis Physics Speakers:
Model 210 Information

(build a pair yourself using HUMAN parts!)

specifications - crossover schematic - order parts

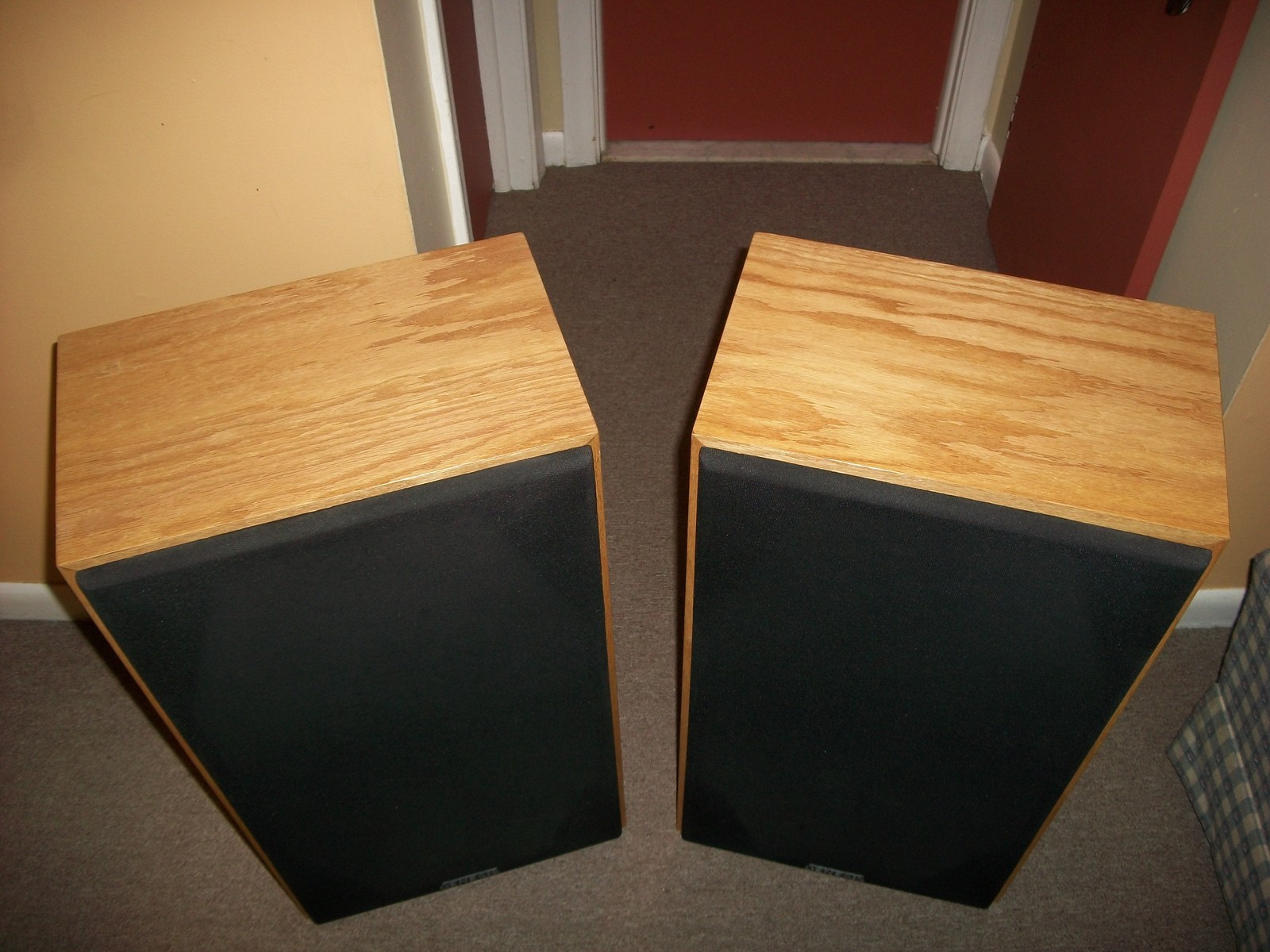

A pair of beautifully restored 210s with new oak wood veneer, using all new parts from HUMAN Speakers, courtesy of Rich D.
(All photos linked to large copies)

Specifications

photo/top - crossover schematic - order parts

Dimensions31" x 16-1/2" x 10-1/2"
Finishwalnut vinyl
Tweeter: "H50B" 1" concave domePRO 002 MG$73.00
Woofer: "L200B" 8"PRO 001$79.00
Passive radiator: "P250A" 10"PRO 014$51.00
Crossover: 1800 Hz, 45 Hz acousticACC 004 B$43.00
Complete rebuild kitK-8110G$454.00 / pair
Sensitivity89 dB, 1w at 1m
Frequency response30 Hz to 20 kHz
Power20 - 100 watts/ch
Impedance8 ohms

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

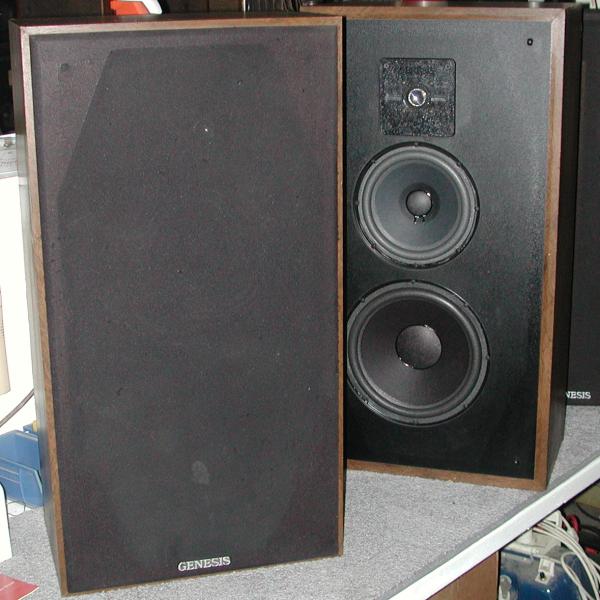

A pair of 210s I rebuilt many years ago.

* * *
