Genesis Physics Speakers:
Model 110 Information

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions27" x 14-1/2" x 10-1/2"
Finishwalnut vinyl
Tweeter: "H50B" 1" concave domePRO 002 MG$73.00
Woofer: "L250B" 10"PRO 031 (New)$127.00
PRO 032 (Rebuild)$93.00
Crossover: 1800 HzACC 004 B$43.00
Complete rebuild kitK-101G$417.00 / pair
Sensitivity89 dB, 1w at 1m
Frequency response38 Hz to 20 kHz
Power15 - 100 watts/ch
Impedance8 ohms

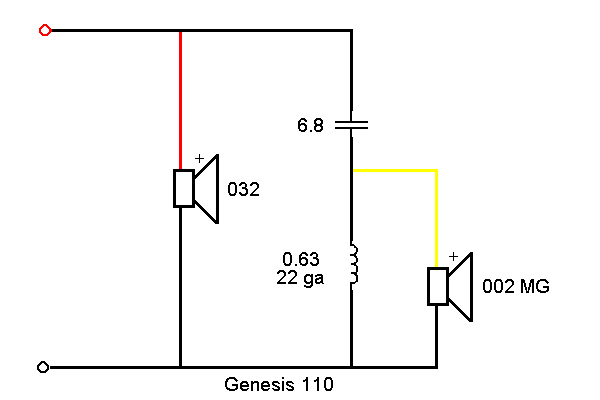

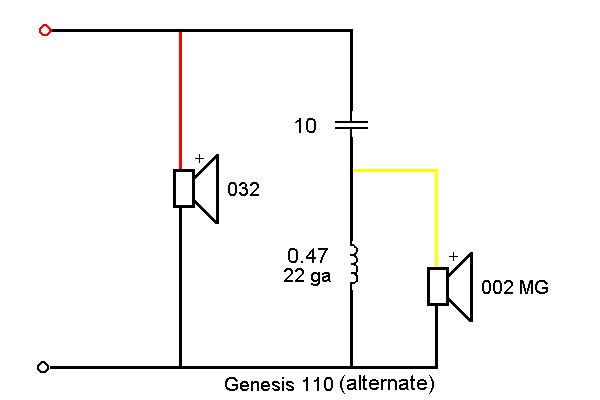

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
