The EPI Time/Energy 100+

specifications - crossover schematic - order parts

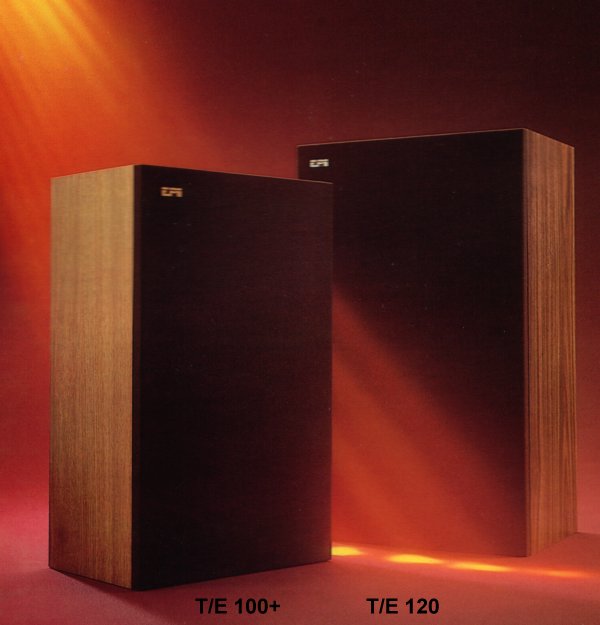

The T/E 100+ is on the left

Specifications

photo/top - crossover schematic - order parts

Dimensions: 21 3/4" x 13 1/2" x 8 3/4"
Weight: 27 lbs
Response: 38 to 20k Hz
RMS Power: 15 to 90 watts
Crossover: 1800 HzACC 004 N$35.00 each
8" wooferPRO 001$79.00 each
1" dome tweeterPRO 002 ME1 or PRO 002 ME4$73.00 each
Complete rebuild kitK-81E$372.00 / pair
Impedance:8 ohms
MSRP:280.00
Built:1982 - 87

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
