Genesis Physics Speakers:
Model 410 Information

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions30-1/2" (off stand) x 15-3/4" x 15"
WeightApprox. 57 lbs
Finishwalnut veneer (a few were oak veneer)
StandsApprox. 8" high, included
Tweeter: "H50B" 1" concave domePRO 002 MG$54.00
Midrange: "M100A" 4 1/2"PRO 024$40.00
Woofer: "L250A" 10"PRO 031 (New)$86.00
PRO 032 (Rebuild)$72.00
Passive radiator: "P250B" 10"PRO 014$39.00
Crossover: 1kHz, 4kHz, 45 Hz acoustic
LF rolloff-3 dB at 32 Hz, 4th order Butterworth
Sensitivity88 dB, 1w at 1m
Frequency response32 Hz to 20 kHz
Power25 - 350 watts/ch (program)
Impedance8 ohms

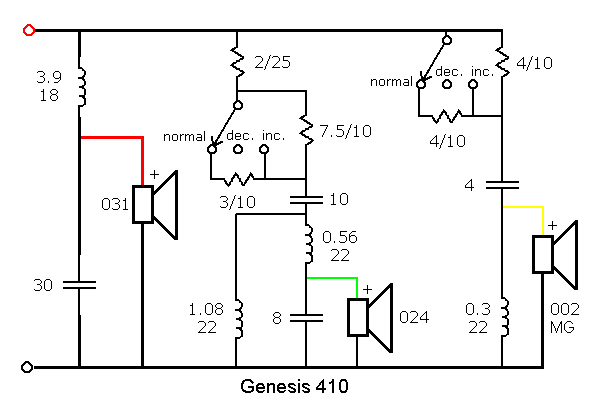

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
