Genesis Physics Speakers:
Model 22 Information

specs - crossover schematic - order parts: Original or Series 2

(Original shown, Series 2 has 8" woofer with 10" passive on rear)

Specifications

photo/top - crossover schematic - order parts: Original or Series 2

Dimensions23.5" x 14" x 7.7"
Weight28 lbs

Original:

Finishteak vinyl
Tweeter: 1" concave dome ("STH")PRO 002 MG$54.00
Woofer: 6" treated paper cone ("SW6P")PRO 007$53.00
Passive radiator: 8" treated paper ("SP6P")PRO 049$32.00
Crossover frequency1500 Hz
Sensitivity, 1w at 1m86 dB
Frequency response32 Hz to 25 kHz
Recommended amplifier power15 - 150 watts/ch
Impedance6 ohms

Series 2:
(very few made)

Finishoak vinyl or oak veneer (very rare)
Tweeter: 1" concave aluminum dome ("STL")PRO 002 MG$54.00
Woofer: 8" polypropylene cone ("GTX205F")PRO 009$65.00
     Note: most produced used the SW3PPRO 001$59.00
Passive radiator: 10" flat, foam-facedPRO 014$39.00
Crossover frequency1500 Hz
Sensitivity, 1w at 1m91 dB
Frequency response46 Hz to 25 kHz
Recommended amplifier power15 - 150 watts/ch
Impedance5 ohms

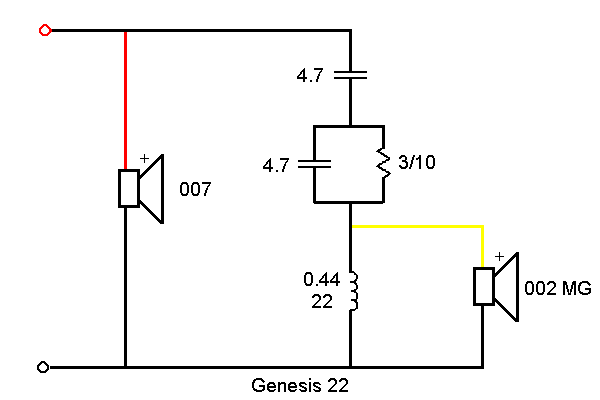

Crossover schematic

photo/top - specifications - order parts: Original or Series 2
Key to Crossover Symbols and Component Values (in a new window)

* * *
