Dimensions:	36" x 12" x 14"
Weight:	62 lbs
Response:	45 to 20k Hz
RMS Power:	20 to 250 watts
Crossover:	700 and 3000 Hz
Driver complement:	10" woofer 1" air spring dome tweeter 4" midrange Two 12" passive radiators	PRO 019 PRO 002 ME4 PRO 025 PRO 023
Impedance:	4 ohms
MSRP:	900.00
Built:	1981 - 82


photo/top - specifications - crossover schematic - order parts
Key to Crossover Symbols and Component Values (in a new window)

A few more photographs:

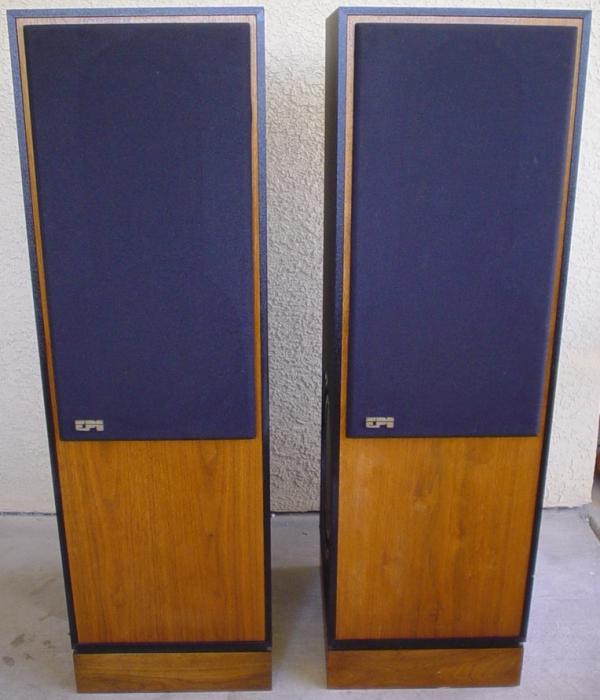

(Photo courtesy eBay seller juggernautaudio)

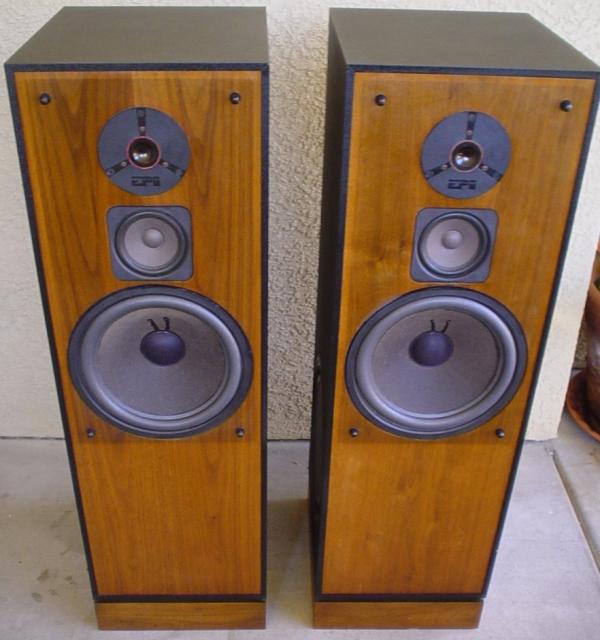

(Photos courtesy Stephen Larkins, eBay id: stevelark)
