The long-awaited HUMAN 81 DK is now available.
Best viewed in "landscape" mode.

EPI & Epicure Speakers:

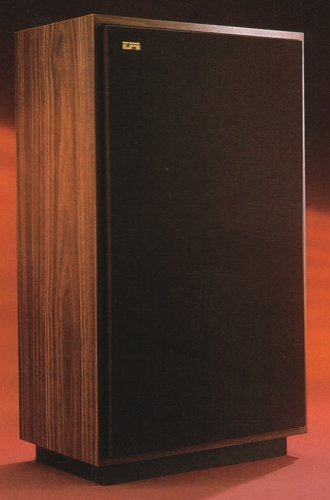

The EPI Time/Energy 320

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions: 29" x 17" x 10 1/2"
Weight: 52 lbs
Response: 42 to 20k Hz
RMS Power: 20 to 250 watts
Crossover: 700 and 3000 Hz
10" woofer with 2" voice coilPRO 019 (Rebuild)$93.00 each
Sometimes with 1" voice coilPRO 018 (Rebuild)$87.00 each
PRO 031 (New)$127.00 each
1" dome tweeterPRO 002 ME1 or PRO 002 ME4$73.00 each
4" midrangePRO 025$40.00 each
Impedance:4 ohms
MSRP:500.00
Built:1982 - 87

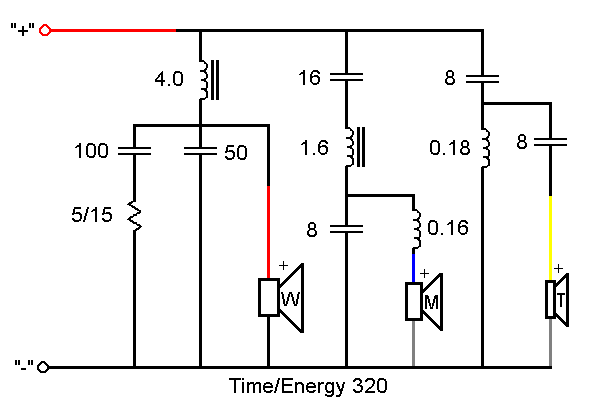

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
