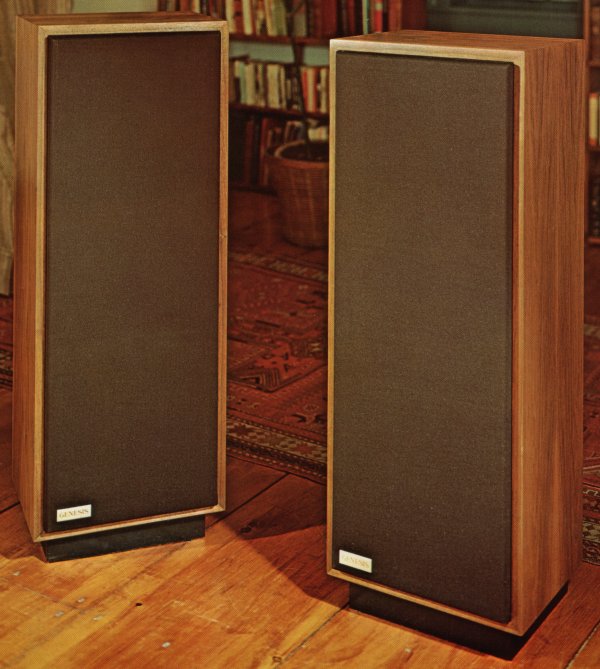

Genesis Physics Speakers:
Model III (3) and 3+ Information
specifications - crossover schematic - order parts: III (3), 3+
(another photo at bottom of page)
photo/top - specifications - crossover schematic - order parts: III (3), 3+
| Height | 37-1/2" |
| Width | 14-1/2" |
| Depth | 12" |
| Weight | 53 lbs |
| Finish | walnut or oak veneer |
| Tweeter | 1" concave dome "H50B" - plastic:
or "H50A" - masonite: | PRO 002 A
PRO 002 F |
| Midrange | 4 1/2", 20 oz magnet | PRO 024 |
| Woofer | "L200B" 8" woofer | PRO 001 |
| Passive radiator | "P250A" 10" dual suspension | PRO 014 |
| Crossover freq. | 800 Hz, 3kHz, 45 Hz acoustic |
| Sensitivity | 88 dB, 1w at 1m |
| Frequency response | 28 Hz to 20 kHz |
Recommended
amplifier power | 25 watts/ch minimum |
| Impedance | 6 ohms |
photo/top - specifications - crossover schematic - order parts: III (3), 3+
Key to Crossover Symbols and Component Values (in a new window)
Some people used to say that Genesis speakers had more technical information printed on their cartons than some speakers had in their owners manuals!

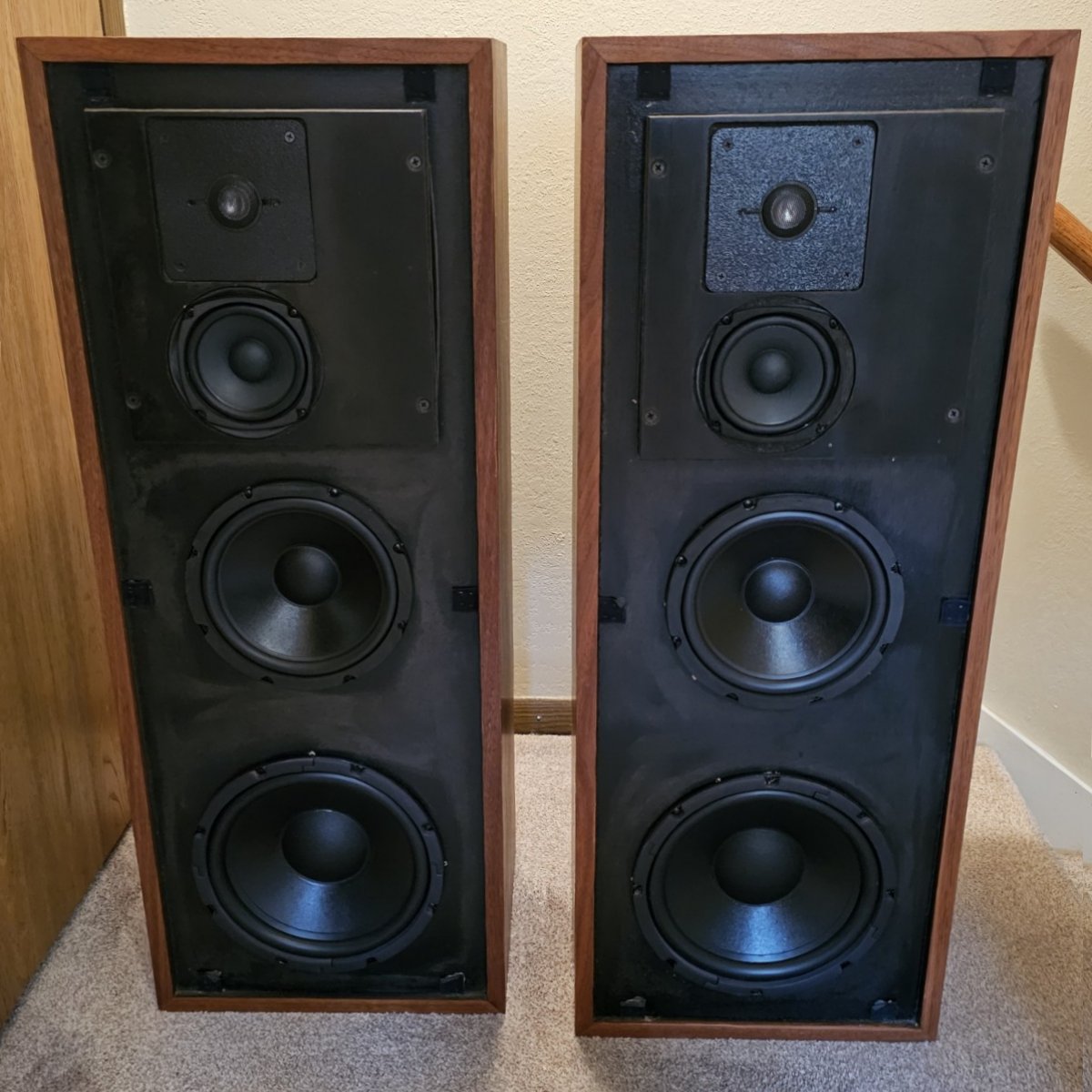

Photo courtesy Tyrone Smith:
