EPI & Epicure Speakers:
The Epicure 3

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

From the original brochure: cabinet oiling instructions

Dimensions: 30" x 12" (9 1/4 at front) x 13"
Weight: lbs
Response: 42 to 20k Hz
RMS Power: 10 to 150 watts
Crossover500, 2500 Hz
8" wooferPRO 028$69.00 each
4" midrangePRO 026$42.00 each
1" tweeterPRO 002 ME 2$61.00 each
Impedance:6 ohms
MSRP:700.00
Built:1988

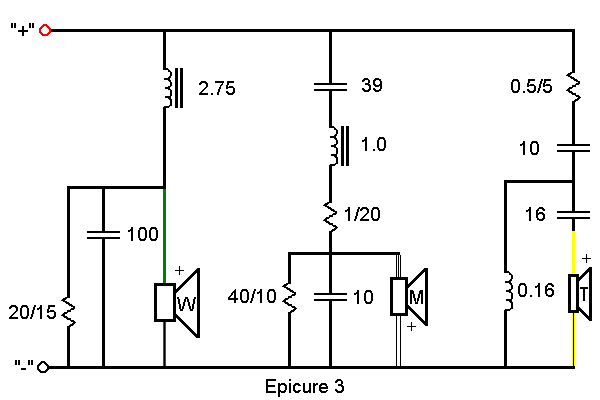

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
