EPI & Epicure Speakers:
The Epicure 10

specifications - crossover schematic - order parts

This is what the Epicure Ten originally looked like. The older ones had masonite faceplate tweeters, I'm not sure if the later "Epicure" labeled aluminum faceplate ones came in before the main cosmetic facelift or not.

Original style Epicure 10 Early Epicure 10 showing parts

Here are a pair of the later Epicure Tens. Both the above and below speakers have been refoamed, but these below are very messy.

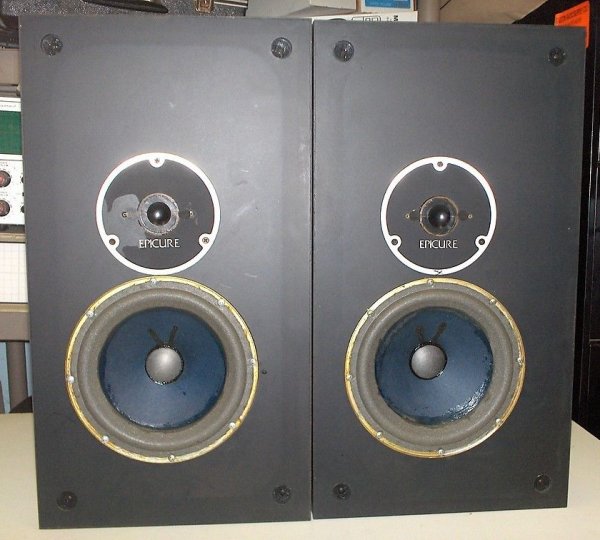

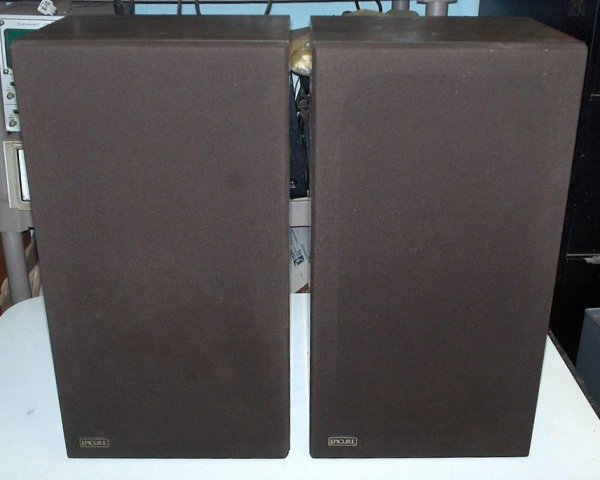

Later Epicure 10 showing parts Later Epicure 10 with grills

I must apologize for having acquired these above images many years ago without managing to get permission to use them.

Specifications

photo/top - crossover schematic - order parts

Dimensions: 22" x 12" x 9 ⅝"(version shown above)
21" x 11" x 9"(early version, shown below)
Weight: 33 lbs
Response: 40 to 20k Hz
RMS Power: 10 to 75 watts (conservative rating)
Crossover: 1800 HzACC 004 A$32.00 each
8" wooferPRO 001$69.00 each
1" air spring dome tweeterPRO 002 ME1$64.00 each
Complete rebuild kitK-81E$341.00 / pair
Impedance:8 ohms
MSRP:250.00
Built:1976 - 80

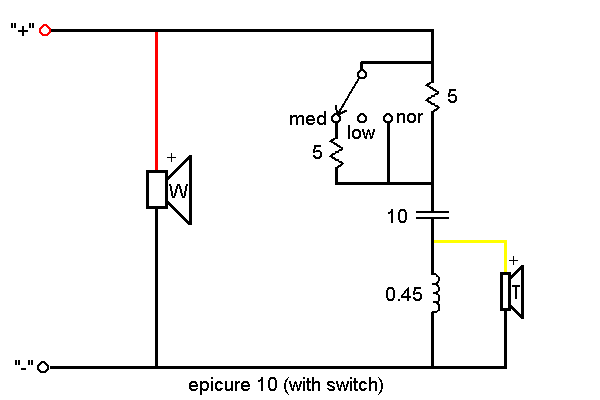

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

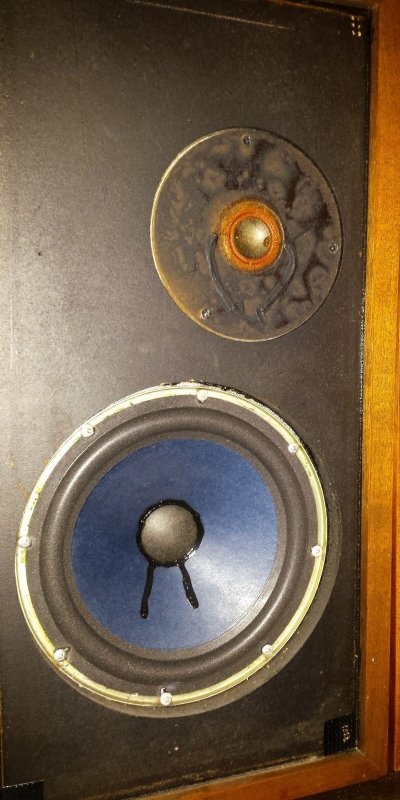

Here is a photo of the earlier version:

* * *
