EPI & Epicure Speakers:
the EPI 180

also known as M180

specifications - crossover schematic - order parts

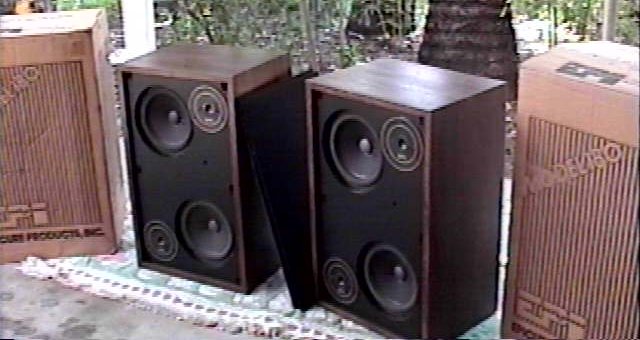

These great photos of the 180 are courtesy Roger Ruddick:

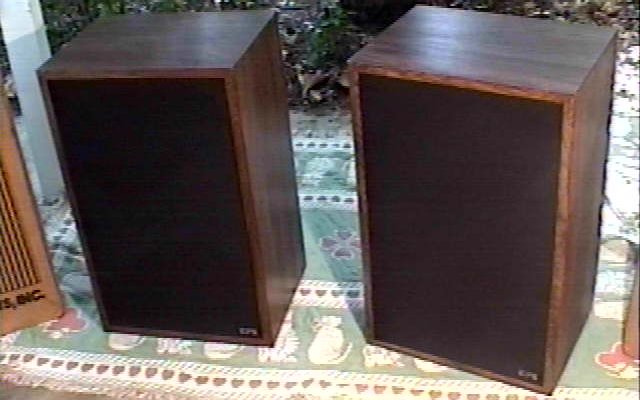

(one more at bottom of page)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 25" x 16" x 12"
Weight: 61 lbs
Response: 42 to 20k Hz
RMS Power: 20 to 100 watts (very conservative rating)
Crossover: 1800 HzACC 004 C$42.00 each
Two 8" woofersPRO 001$69.00 each
Two 1" air spring dome tweetersPRO 002$61.00 each
Complete rebuild kitK-202E$619.00 / pair
Impedance:8 ohms
MSRP:400.00
Built:1974-82

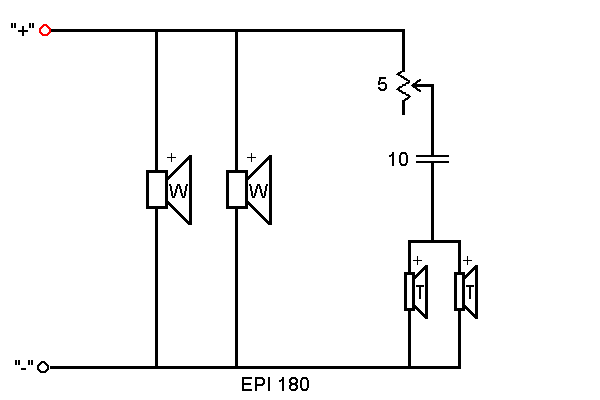

Crossover schematic

photo/top - specifications - order parts

(Note: some EPI 180s are wired more like the diagram for the EPI 240 crossover, with a three-way tweeter level switch instead of a variable resistor.)

Key to Crossover Symbols and Component Values (in a new window)

* * *
