EPI & Epicure Speakers:
The EPI 105
specifications - crossover schematic - order parts
Specifications
photo/top - crossover schematic - order parts
| Dimensions: | 22 1/2" x 14 1/2" x 8 1/2" | |
| Weight: | 28 lbs | |
| Response: | 44 to 20k Hz | |
| RMS Power: | 12 to 80 watts (conservative rating) | |
| Crossover: 1800 Hz | ACC 004 A | $35.00 each |
| 8" woofer | PRO 001 | $79.00 each |
| 1" air spring dome tweeter | PRO 002 ME1 | $73.00 each |
| Complete rebuild kit | K-81E | $372.00 / pair |
| Impedance: | 8 ohms | |
| MSRP: | n/a | |
| Built: | n/a | |

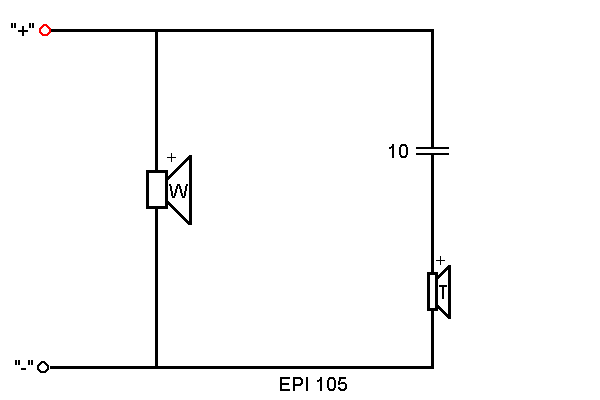

Crossover schematic
photo/top - specifications - order parts
Key to Crossover Symbols and Component Values (in a new window)
* * *
