EPI & Epicure Speakers:
The EPI 101

(See the notes about the EPI 101, 110, and 150 models)

specifications - crossover schematic - order parts

(photo provided by a kind owner)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 20 1/4" x 12" x 8 3/4"
Weight: 27 lbs
Response: 46 to 20k Hz
RMS Power: 12 to 75 watts (conservative rating)
Crossover: 1800 HzACC 004 A$35.00 each
8" wooferPRO 001$79.00 each
1" air spring dome tweeterPRO 002 ME1$73.00 each
Complete rebuild kitK-81E$372.00 / pair
Impedance:8 ohms
MSRP:240.00
Built:1977 - 79

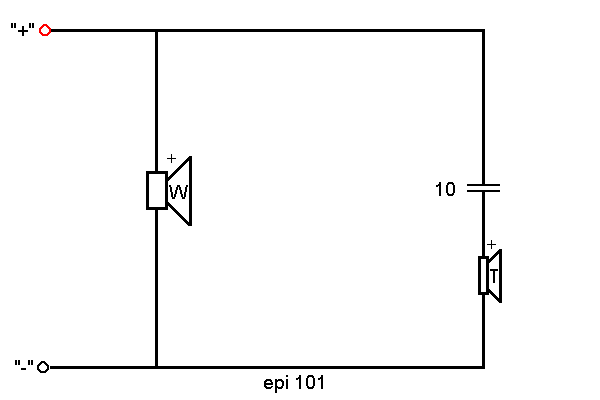

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
