EPI & Epicure Speakers:
The EPI A240

specifications - crossover schematic - order parts

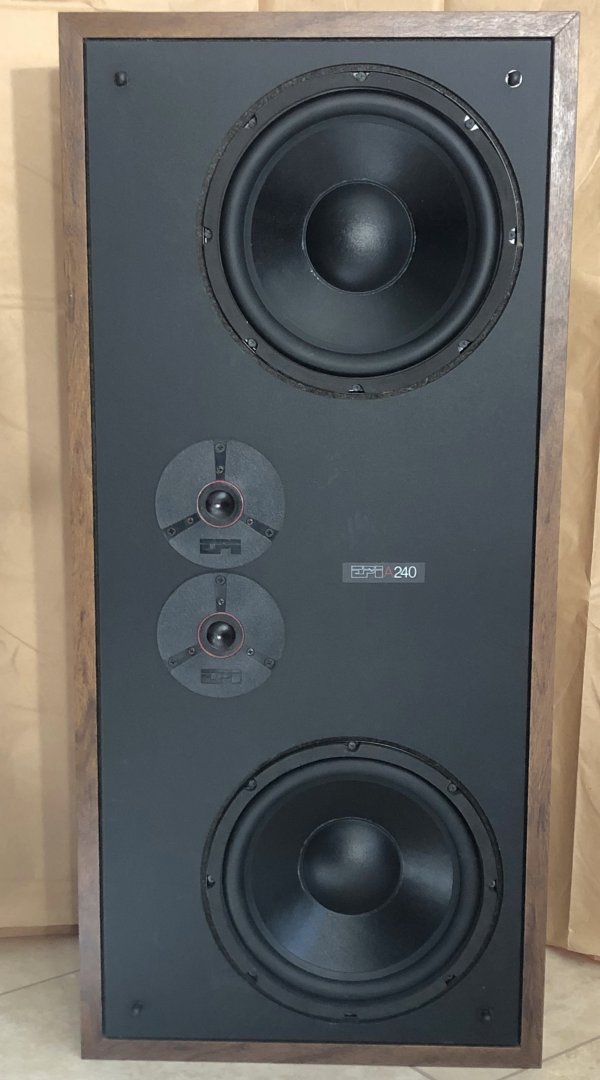

(photo courtesy of ebay seller hifinut1 - more below)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 35 1/2" x 16 1/2" x 11 1/8"
Weight: 50 lbs
Response: 36 to 20k Hz
RMS Power: 20 to 100 watts (very conservative rating)
Crossover: 1800 HzACC 004 D$44.00 each
Two 10" woofers (1" voice coil)PRO 018 (Rebuild)$72.00 each
PRO 031 (New)$92.00
Two 1" air spring dome tweetersPRO 002 ME4$61.00 each
Impedance:8 ohms
MSRP:(unknown)
Built:1981 - 82

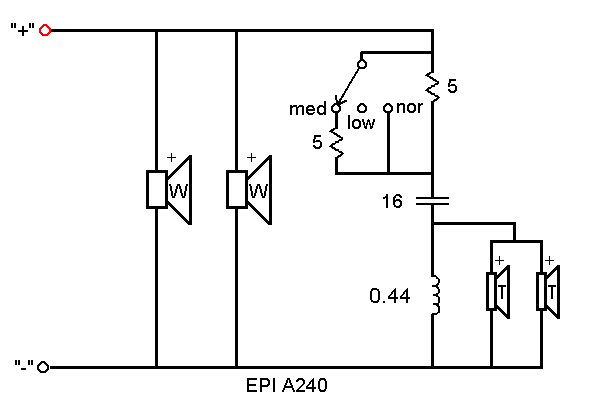

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

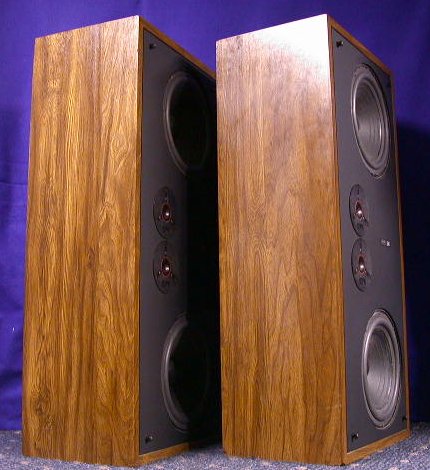

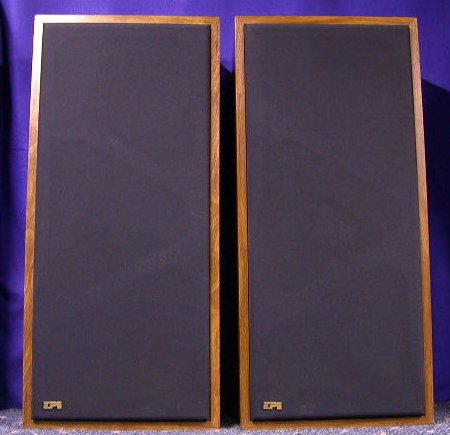

more photos from the kind ebayer hifinut1:

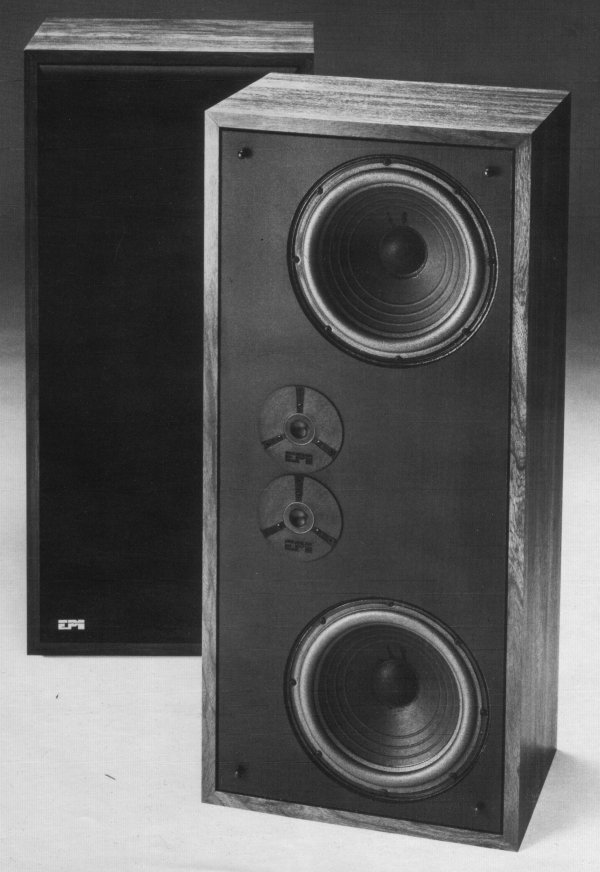

Original brochure photo:

* * *
