Genesis Physics Speakers:
"Genesis Basic Loudspeaker" (GBL) Information

specifications - crossover schematic - order parts

This photo was sent to me by a customer (before he ordered new woofers):

Specifications

photo/top - crossover schematic - order parts

Dimensions16 1/2" x 10 1/4" x 6 3/8"
Weight14 lbs
Finishwalnut vinyl
Tweeter: 1" concave domePRO 002 MG$54.00
Note: the original is somewhat smaller than the PRO 002 MG
PRO 002 F (with trade)$43.00
Woofer: "L165A" 6"PRO 007$56.00
Crossover: 1800 HzACC 004 A$30.00
Sensitivity88 dB 1w/1m
Frequency response55 Hz to 22 kHz
Power10 to 75 watts/ch
Impedance8 ohms

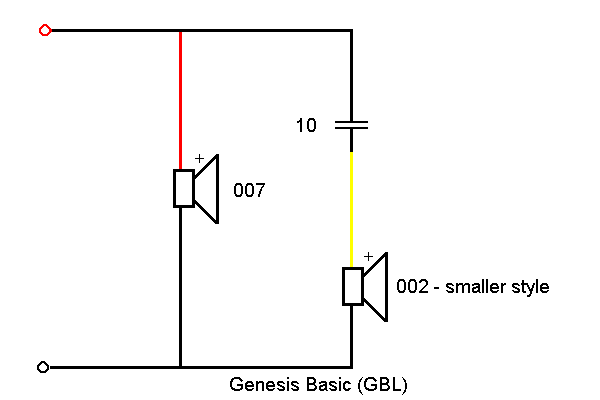

Crossover schematic

photo/top - specifications - order parts



Key to Crossover Symbols and Component Values (in a new window)

* * *
