specs - crossover schematic - order parts: Original or Series 2

(Original shown, Series 2 similar in appearance)

photo/top - specs - crossover schematic - order parts: Original or Series 2

Height	19"
Width	22-1/4"
Depth	7-1/2"
Weight	16 lbs
		Original:	Series 2:
Finish		teak vinyl	oak vinyl
Tweeter	1" inverted dome 1" concave aluminum	PRO 002 A	PRO 002 A
Woofer	8" treated fiber 8" polypropylene	PRO 004	PRO 009
Crossover frequency		1500 Hz	1800 Hz
Sensitivity	(for 1w input at 1m)	89 dB	90 dB
Frequency response		40 Hz - 20kHz	Hz - 26kHz
Recommended amplifier power	15 - 100 watts/ch
Impedance		6 ohms	8 ohms

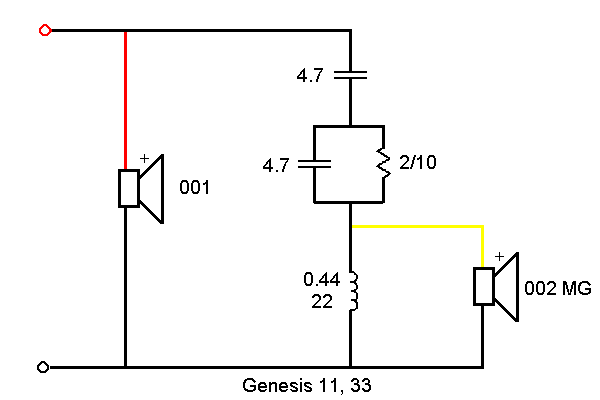

photo/top - specs - crossover schematic - order parts: Original or Series 2
Key to Crossover Symbols and Component Values (in a new window)
