EPI & Epicure Speakers:
The Epicure 2
crossover schematic - specifications - order parts
From the original brochure: cabinet oiling instructions
Screw hex head (Allen head) sizes: woofer: 5/32"; midrange: 7/64" or T15; tweeter: 5/64"
Specifications
photo/top - crossover schematic - order parts
| Dimensions: | 35 1/4" x 12" (9 1/4 at front) x 13" | |
| Weight: | lbs | |
| Response: | 38 to 20k Hz | |
| RMS Power: | 10 to 150 watts | |
| Crossover | 190, 500, 2500 Hz | |
| Two 8" woofers | PRO 028 | $79.00 each |
| 4" midrange | PRO 026 | $56.00 each |
| 1" tweeter | PRO 002 ME 2 | $73.00 each |
| Impedance: | 6 ohms | |
| MSRP: | 900.00 | |
| Built: | 1988 |

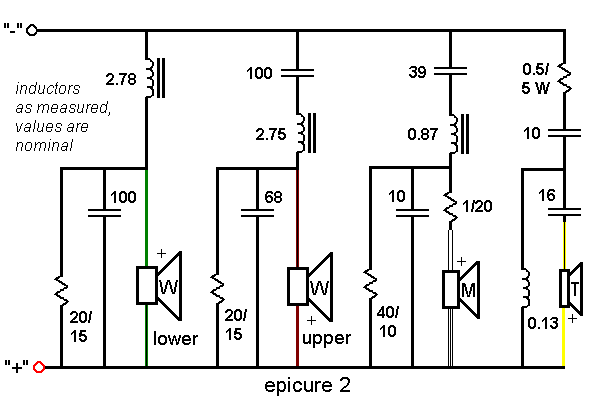

Crossover schematic
photo/top - specifications - order partsNote: Since I measured the choke values in situ, the values shown here should not be used directly to specify replacements.
Key to Crossover Symbols and Component Values (in a new window)
photo/top - specifications - order parts
* * *
