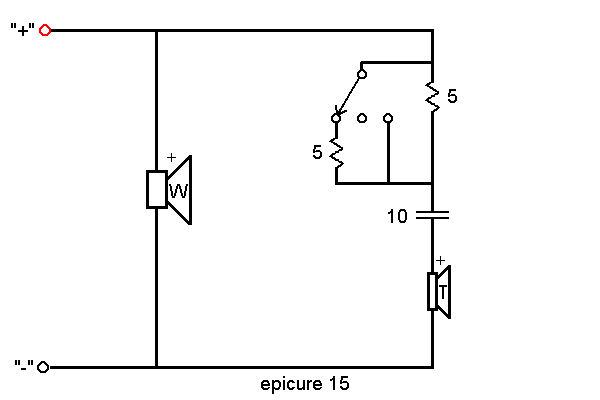

specifications - crossover schematic - order parts


photo/top - specifications - crossover schematic - order parts

Dimensions:	33" x 17" x 10 1/2"
Weight:	49 lbs
Response:	34 to 20k Hz
RMS Power:	15 to 125 watts
Crossover:	1800 Hz	ACC 004 A
Driver complement:	8" woofer 1" air spring dome tweeter 12" passive radiator	PRO 017 PRO 002 PRO 023
Impedance:	8 ohms
MSRP:
Built:


photo/top - specifications - crossover schematic - order parts

Key to Crossover Symbols and Component Values (in a new window)
