specifications - crossover schematic - order parts

Above, the original brochure photo courtesy of Jim Greenshields.

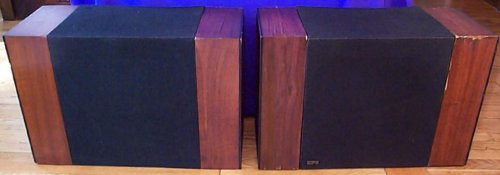

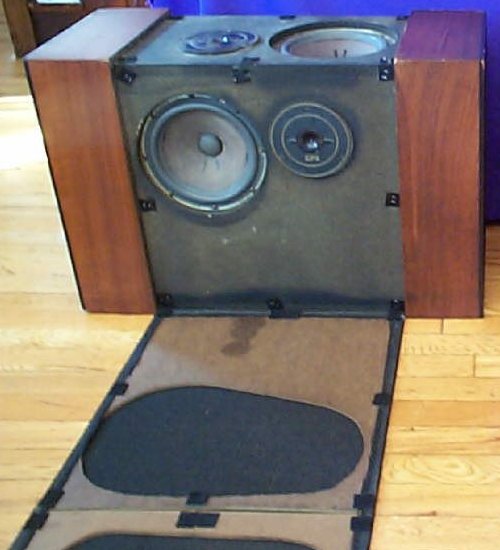

Below, photos of the real thing 30 years later,
courtesy of ebay.com seller stereos-n-more.


photo/top - specifications - crossover schematic - order parts

Dimensions:	11" x 18" x 28"
Weight:	40 lbs
Response:	30 to 18k Hz
RMS Power:	20 to 100 watts (very conservative rating)
Crossover:	1800 Hz	ACC 004 C
Driver complement:	Two 8" woofers Two 1" air spring dome tweeters	PRO 001 PRO 002
Impedance:	4 or 16 ohms
MSRP:	295.00
Built:	1971 - ?


photo/top - specifications - crossover schematic - order parts

Key to Crossover Symbols and Component Values (in a new window)
