EPI & Epicure Speakers:
the EPI 110

(Also known as M110)

(See the notes about the EPI 101, 110, and 150 models)

specifications - crossover schematic - order parts

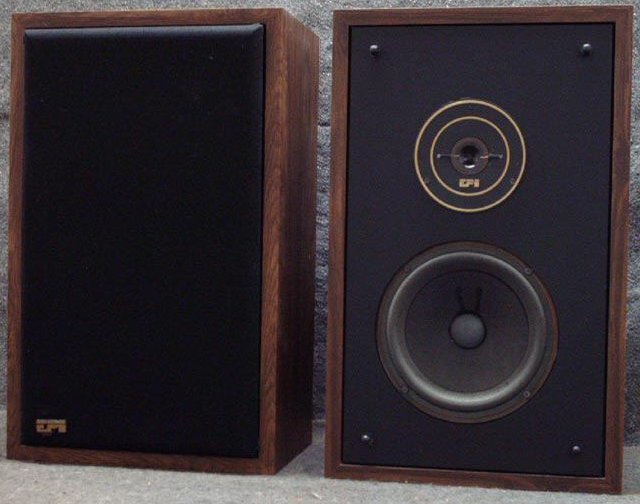

(Photo courtesy of Adickson)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 20 1/4" x 12" x 8 3/4"
(Some earlier versions, shown below)24" x 14 1/4" x 10 1/4"
Weight: 27 lbs
Response: 45 to 20k Hz
RMS Power: 12 to 75 watts (conservative rating)
Crossover: 1800 HzACC 004 A$30.00 each
8" wooferPRO 001$59.00 each
1" air spring dome tweeterPRO 002 ME1$54.00 each
Complete rebuild kitK-81E$298.00 / pair
Impedance:8 ohms
MSRP:240.00
Built:1974-80

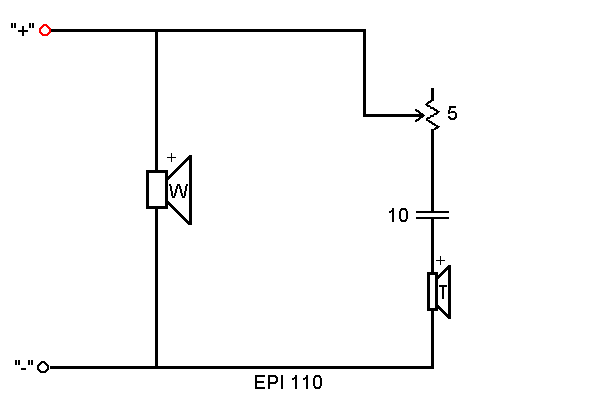

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

Here are an original promotional photograph on the left, and a physical example on the right (featuring a new HUMAN Speakers PRO 001 woofer), of the earlier model bearing the same number, but having different dimensions:

* * *
