EPI & Epicure Speakers:
The EPI A140

specifications - crossover schematic - order parts

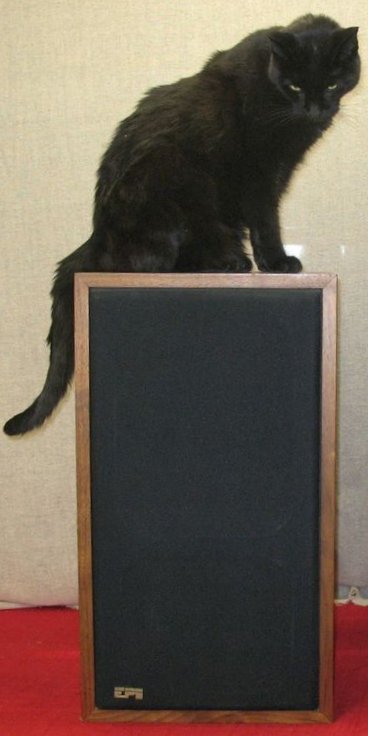

EPI A140 with cat EPI A140
(photographs courtesy of eBay seller laurenceparker and the cat)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 24" x 13 1/2" x 9"
Weight: 37 lbs
Response: 38 to 20 Hz
RMS Power: 20 to 100 watts
Crossover: 1800 HzACC 004 A$30.00 each
6" wooferPRO 007$53.00 each
1" air spring dome tweeterPRO 002 ME4$54.00 each
8" passive radiatorPRO 049$32.00 each
Impedance:8 ohms
MSRP:440.00
Built:1981 - 82

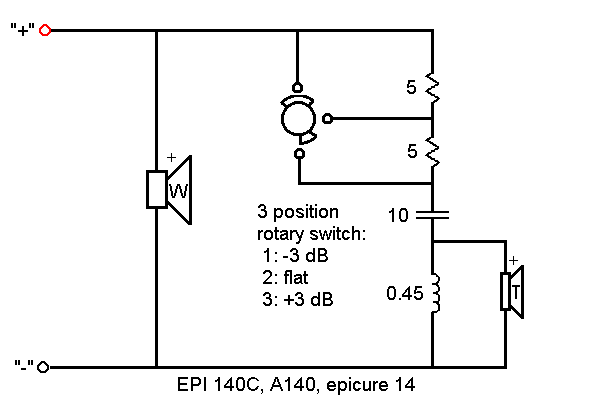

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
