EPI & Epicure Speakers:
The Epicure 1.0

specifications - crossover schematic - order parts

(Photo courtesy of Chrisw1740)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 14 1/2" x 10 1/4" x 8"
Weight: 18 lbs
Response: 50 to 20 Hz
RMS Power: 25 to 80 watts
Crossover:1800 Hz, fourth order
6" wooferPRO 007$64.00 each
1" air spring dome tweeterPRO 002$61.00 each
Impedance:8 ohms
MSRP:398.00
Built:1980 - 85

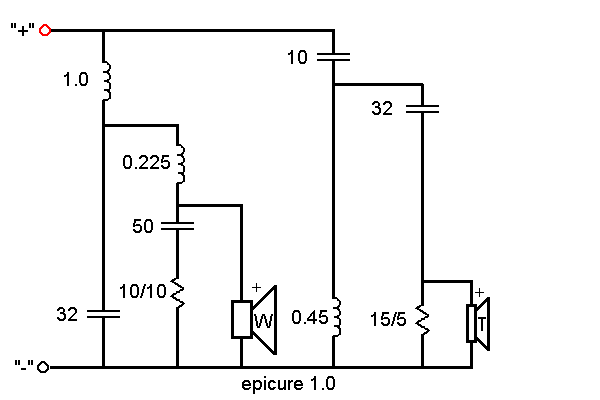

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

(Poor quality scans of original brochure graphics)

* * *
