EPI & Epicure Speakers:
The EPI M60

specifications - crossover schematic - order parts

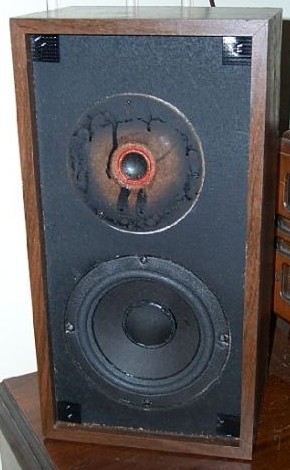

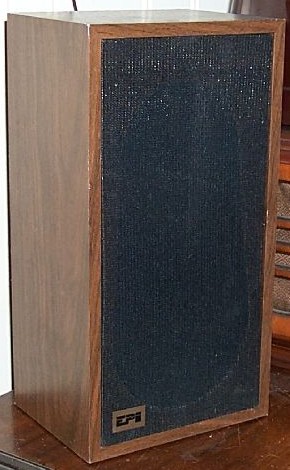

Photographs courtesy Rick Fedorchak:

Specifications

photo/top - crossover schematic - order parts

Dimensions: 17" x 9" x 7"
Weight: 15 lbs
Response: 50 to 18k Hz
RMS Power: 10 to 35 watts (very conservative rating)
Crossover: 1800 HzACC 004 A$32.00 each
6" wooferPRO 007$64.00 each
1" air spring dome tweeterPRO 002 ME1$61.00 each
Complete rebuild kitK-61E$318.00 / pair
Impedance:8 ohms
MSRP:130.00
Built:1974-77

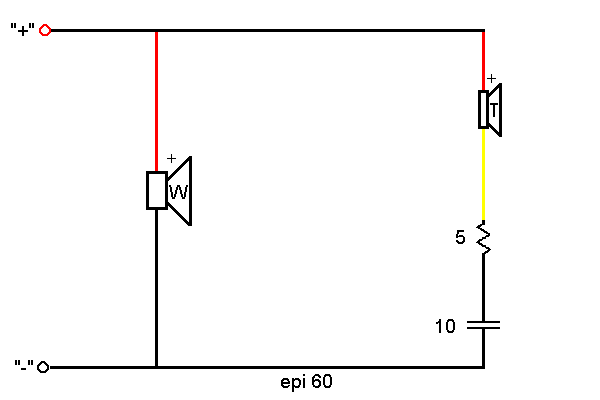

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
