Fred Locke Stereo
FLS 4 speakers

These were built by Genesis Physics for Fred Locke Stereo. They use the standard Genesis 8" woofer and inverted dome tweeter, and so are completely repairable using my parts.

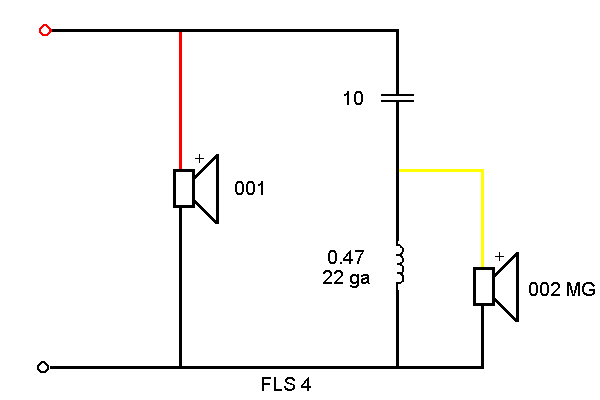

specifications - crossover schematic - order parts

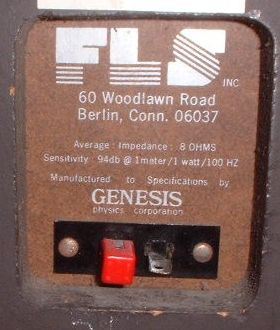

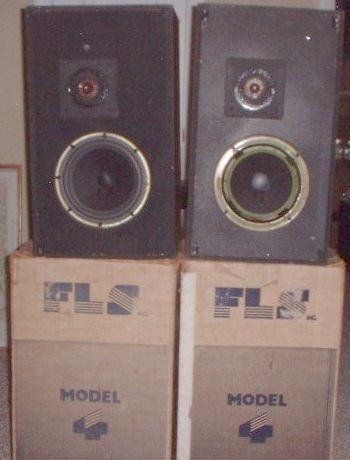

speakers with cartons rear terminal board

(photos courtesy an owner/customer)


photo/top - specifications - crossover schematic - order parts

Height22"
Width12.5"
Depth9"
Weight28 lbs
Finishwalnut vinyl
Tweeter: 1" concave domePRO 002 MG$54.00
Woofer: "L200B" 8"PRO 001$59.00
Crossover freq.1800 HzACC 004 B
Frequency response38 Hz to 20 kHz
Recommended
amplifier power
15-100 watts/ch
Impedance8 ohms


photo/top - specifications - crossover schematic - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
