Height	19"
Width	10-1/2"
Depth	7-1/2"
Finish	walnut vinyl
Tweeter	"H50B" 1" inverted dome, 20 oz magnet	PRO 002 A
Woofer	"L200B" 8" woofer	PRO 001
Crossover freq.	1800 Hz	ACC 004 A
Sensitivity	89 dB, 1w at 1m
Frequency response	55 Hz to 20 kHz
Recommended amplifier power	12 - 50 watts/ch
Impedance	8 ohms


photo/top - specifications - crossover schematic - order parts

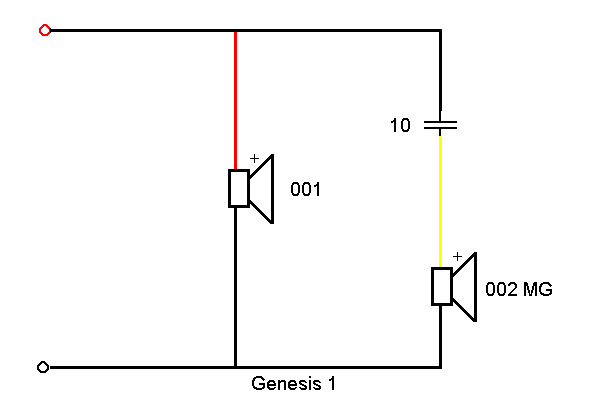

Key to Crossover Symbols and Component Values (in a new window)
