Genesis Physics Speakers:
AM 165 Information

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions9-3/4" x 7" x 1" above, 2-1/4" below
Finishblack paint
Tweeter: 1" concave domePRO 002
Woofer: 6" PRO 007$56.00
Crossover: 2000 Hz
Sensitivity91 dB, 1w at 1m
Frequency response50 Hz to 20 kHz
* Bass response below 100 Hz depends on enclosed air space
Power5 - 80 watts/ch
Impedance8 ohms

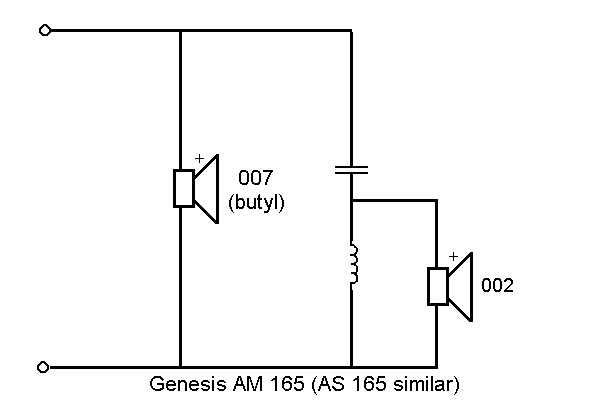

Crossover schematic

photo/top - specifications - order parts


Key to Crossover Symbols and Component Values (in a new window)

* * *
