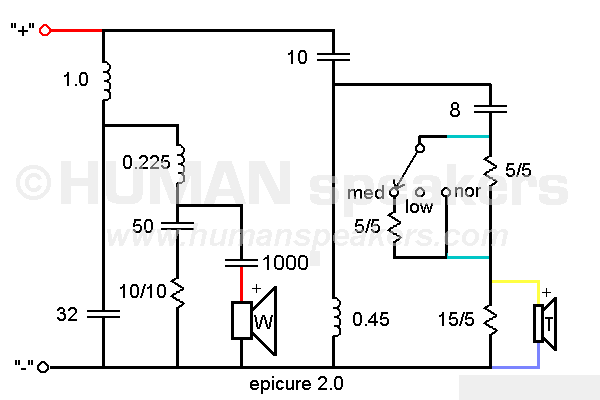

specifications - crossover schematic - order parts


photo/top - specifications - crossover schematic - order parts

Dimensions:	34" x 12 3/4" x 10 3/4"
Weight:	41 lbs
Response:	38 to 20k Hz
RMS Power:	30 to 100 watts
Crossover:	1800 Hz
Driver complement:	6" woofer 1" air spring dome tweeter 8" passive radiator	PRO 016 PRO 002 PRO 049
Impedance:	8 ohms
MSRP:	710.00
Built:	1979 - 86


photo/top - specifications - crossover schematic - order parts

Key to Crossover Symbols and Component Values (in a new window)
