specifications - crossover schematic - order parts

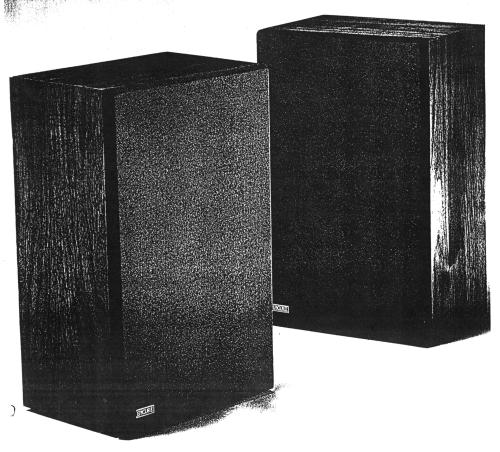

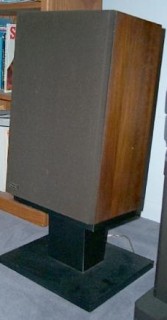

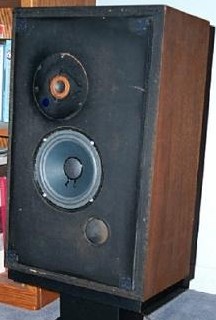

with the 1205 tweeter:	grill on:	with the early tweeter:

(Photographs above courtesy Rick Fedorchak,
new replacement woofers by HUMAN Speakers)


photo/top - specifications - crossover schematic - order parts

Dimensions:	21 1/2 x 13 1/2" x 9 1/2"
Weight:	36 lbs
Response:	38 to 20k Hz
RMS Power:	15 to 80 watts (conservative rating)
Crossover:	1800 Hz	ACC 004 A
Driver complement:	6" woofer 1" air spring dome tweeter	PRO 007 PRO 002
Impedance:	8 ohms
MSRP:	298.00
Built:	1976...


photo/top - specifications - crossover schematic - order parts

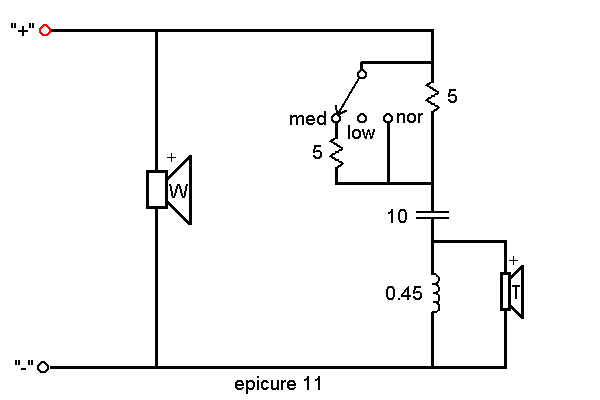

Key to Crossover Symbols and Component Values (in a new window)
