Dimensions:	33 1/2" x 8 1/2" x 8 1/2"
Weight:	28 lbs
Response:	40 to 18 k Hz
RMS Power:	15 to 70 watts
Crossover:	3000 Hz
Driver complement:	Two 4.5" woofers Two 1" air spring dome tweeters	PRO 024 PRO 002
Impedance:	8 ohms
MSRP:	360.00; MT2B: 220.00 (pair)
Built:	1972 - 4


photo/top - specifications - crossover schematic - order parts

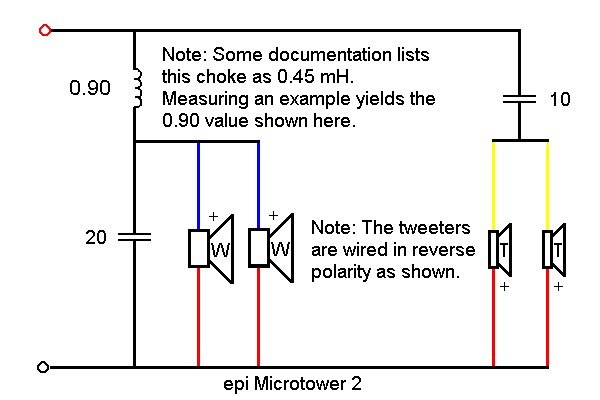

Key to Crossover Symbols and Component Values (in a new window)
