PRO 005 Woofer
(to price list)

The PRO 005 is a very long throw, high power handling eight inch woofer. Here is a picture of the parts I use to build it:

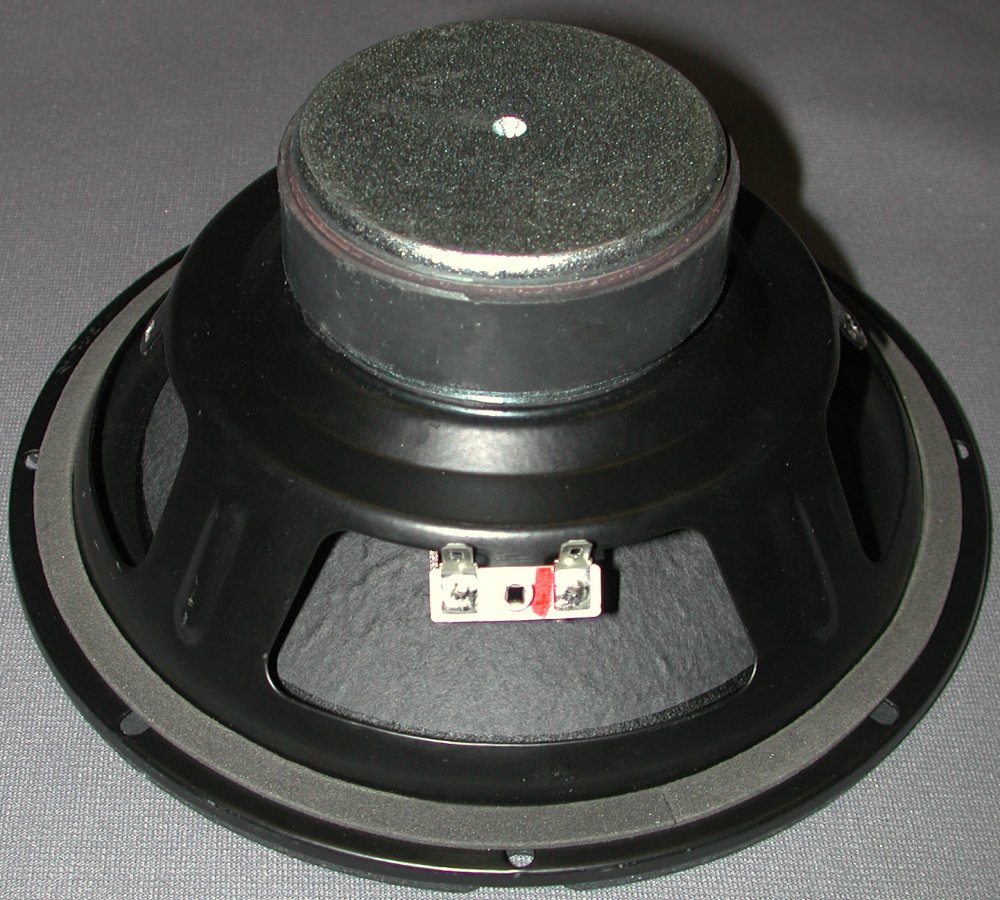

And the end result:

  A: Outer diameter   8 1/4"
B: Hole diameter7 1/4"
C: Total depth3 9/16"
D: Magnet diameter3 3/8"
E: Magnet assy. ht.1 5/16"
F: Mounting diameter7 3/4" (8)
G: Rabbett depth5/32"
H: Nominal VC dia.1.0"
J: Winding length0.95"
K: Gap height0.25"

Fs   26 Hertz
Re3.35 ohms
Ie1.0 mH
Xmax0.35"
Qm5.7
Qe0.51
Qt0.47
Vas55 liters
Sensitivity88 dB/1w/1m
Power200 w RMS
"Extra" options available when I build this part:

* * *
