PRO 002 B Tweeter
Discontinued - please pee the PRO 002 M and PRO 002 N series of tweeters

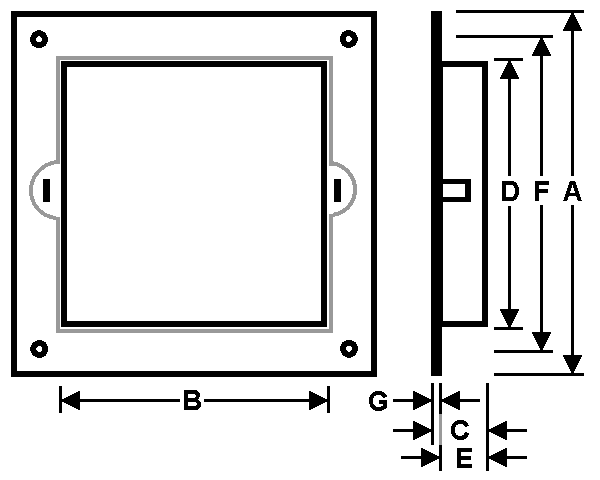

  A: Outer (square)   4 7/8" square
B: Hole (square)3 1/2"
C: Total depth7/8"
D: Magnet (square)3 1/8"
E: Magnet assy. ht.0.75"
F: Mounting holes3 7/8" (4)
G: Rabbett depth5/32"
H: Nominal VC dia.0.8"
J: Winding length0.18"
K: Gap height0.12"

Fs   1380 Hz

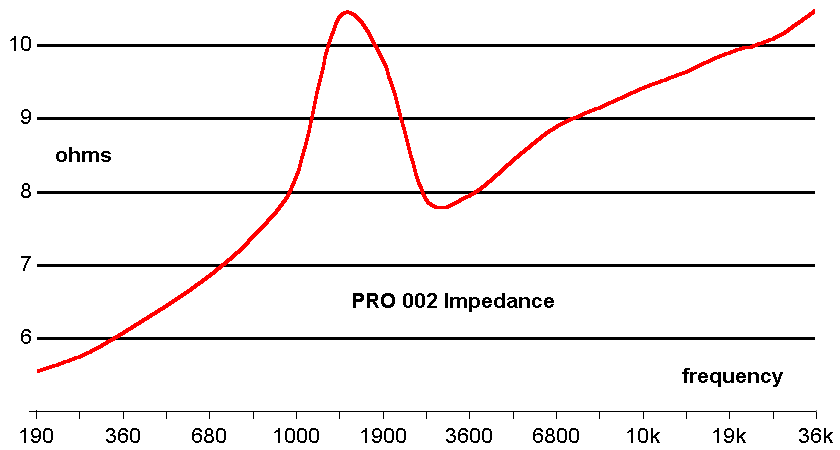

(this curve may incorporate some measurement technique errors)
(this curve may incorporate some measurement technique errors)
Re4.2 ohms
Ie72 uH
Qt~ 0.9
Sensitivity90 dB
Power40 w rms

* * *
