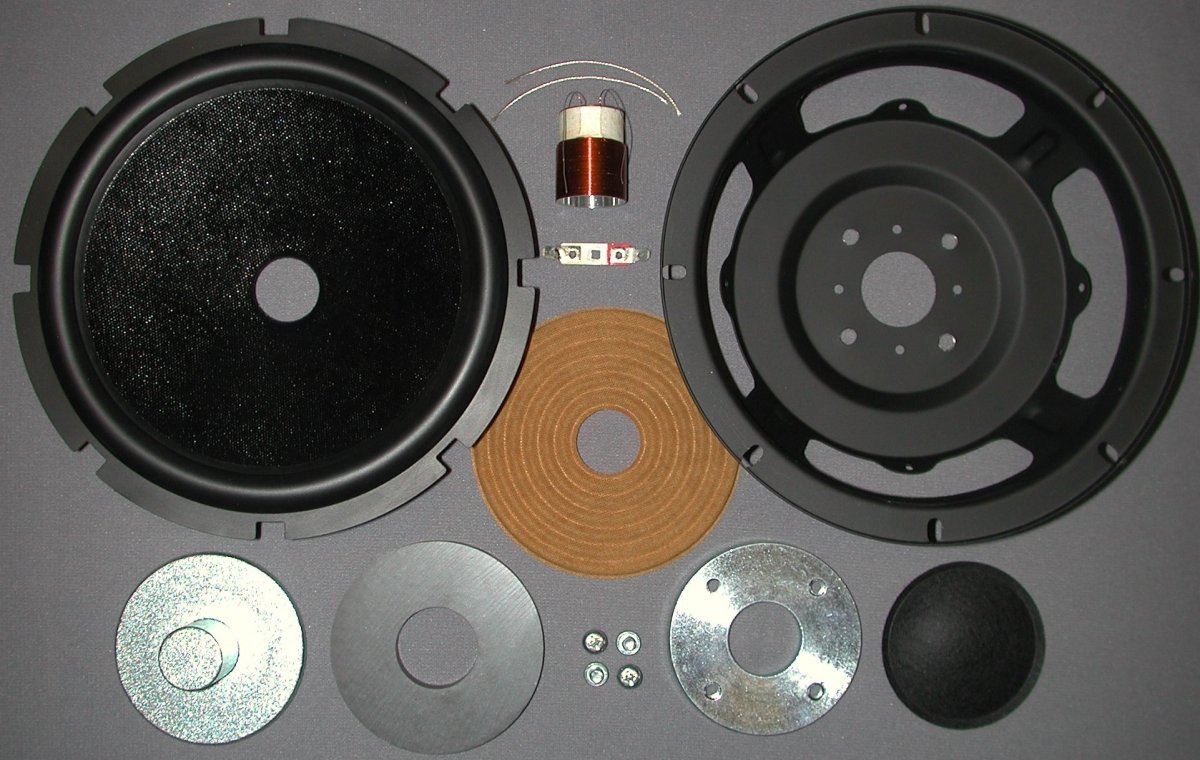

PRO 001 Woofer
(to price list)
 |
|
A: Outer diameter |
|
8 1/4" |
| B: Hole diameter | 7 1/8" |
| C: Total depth | 3 9/16" |
| D: Magnet diameter | 3 3/8" |
| E: Magnet assy. ht. | 1 5/16" |
| F: Mounting diameter | 7 3/4" (8) |
| G: Rabbett depth | 5/32" |
| H: Nominal VC dia. | 1.0" |
| J: Winding length | 0.75" |
| K: Gap height | 0.25" |
| Fs |
|
27 Hertz |
|
 |
| Re | 3.8 ohms |
| Ie | 0.87 mH |
| Xmax | 0.25" |
| Qm | 8.5 |
| Qe | 0.53 |
| Qt | 0.50 |
| Vas | 76 liters |
| Sensitivity | 89 dB/1w/1m |
| Power | 175 w RMS |
"Extra" options available when I build this part:
