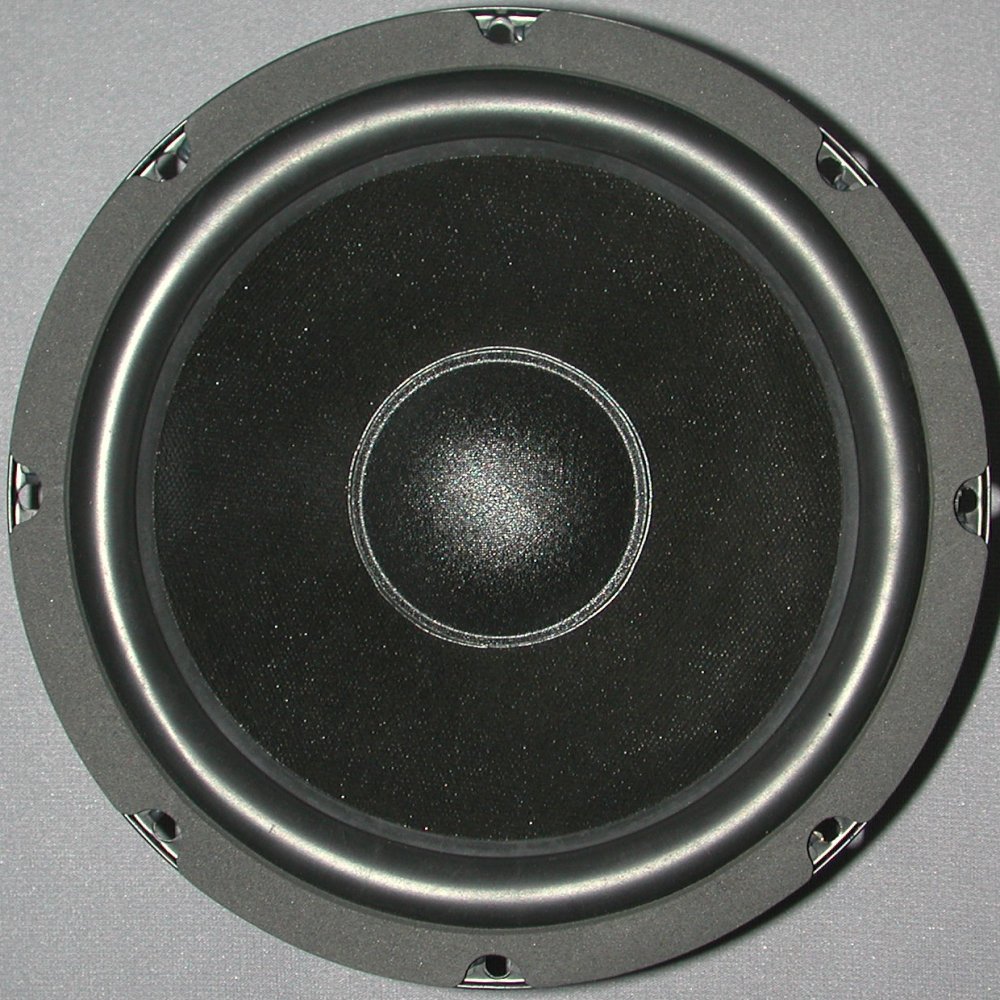

Replacement part number PRO 006
This is a new, improved replacement for the 8" woofer used in the following EPI/Epicure models:
What's different and why:
- Butyl rubber surround: increased longevity, lower resonant frequency (some early EPI woofers were made this way).
- Treated cone: seals speaker system better, more attractive, less change due to humidity (most later Genesis woofers were made this way).
- Treated cloth dust cap: looks better than the exposed wires on most older woofers.
- Sealing gasket attached to rear mounting surface: easier to use (discard your old gasket).
- Acoustically inert dense EVA "gasket" on front: makes packaging simpler, more attractive.
- Round magnet structure: identical in weight and function (most later EPI woofers were made this way).
- Extended pole piece: not visible, but improves linearity.
What's the same and why:
- Voice coil: the long voice coil winding is critical to linearity, and its high inductance is part of why the woofer does not need crossover circuitry to roll off the high frequencies.
- Magnet weight and strength, field guide (yoke) plates: again, a critical part of the design
- Cone material, weight, and density: the exact design of the cone is also part of how the woofer rejects high frequencies on its own.
- Rear suspension compliance and travel: allows full linear cone excursion
- Free air resonance: although not a "part", the low Fs is important to the extended low bass response.
* * *
