EPI & Epicure Speakers:
The Epicure Model One Power Amplifier
(note: parts and service are not available through me)
Once upon a time, I bought one of these from a customer, and included were the original owner's manual, a fistful of review reprints, and a sales brochure. I used it in my factory "listening area," and it ran my factory overhead speakers and workshop speakers day in and day out flawlessly. I eventually sold it, to a very motivated buyer.
Here are two great photos from that brochure:
|Dimensions:||18 1/2" x 12 1/2" x 7 1/2"|
|RMS Power:||125 watts rms into 8 ohms,
both channels driven 20-20,000 Hz
at or below 0.2% THD or IM
(typically over 150 watts)
|Total Harmonic Distortion||0.2% rated, typical below 0.05 into 8 ohms|
|IM Distortion||0.2% rated, typical below 0.03 into 8 ohms|
|Frequency Response||20 to 20k Hz, +0, -0.1 dB
10 to 100k Hz, +/- 0.5 dB
10 to 180k Hz, + 0, -3 dB
|Rise Time||Better than 1.5 microsecond|
|Damping Factor||100 or greater|
|Slewing Rate||> 17 v/microsecond|
|Signal to Noise Ratio||> 100 dB at full output, typical > 110 dB|
|Phase Response||maximum deviation 15 degrees
20 - 20k Hz into 8 ohms
|Input Impedance||10k ohms (input level at maximum)|
|Input Capacitance||50 picofarads|
|Input Sensitivity||1 volt for 125 watts|
|Stability||Unconditionally stable from short to open|
|MSRP:||600.00 - 649.00|

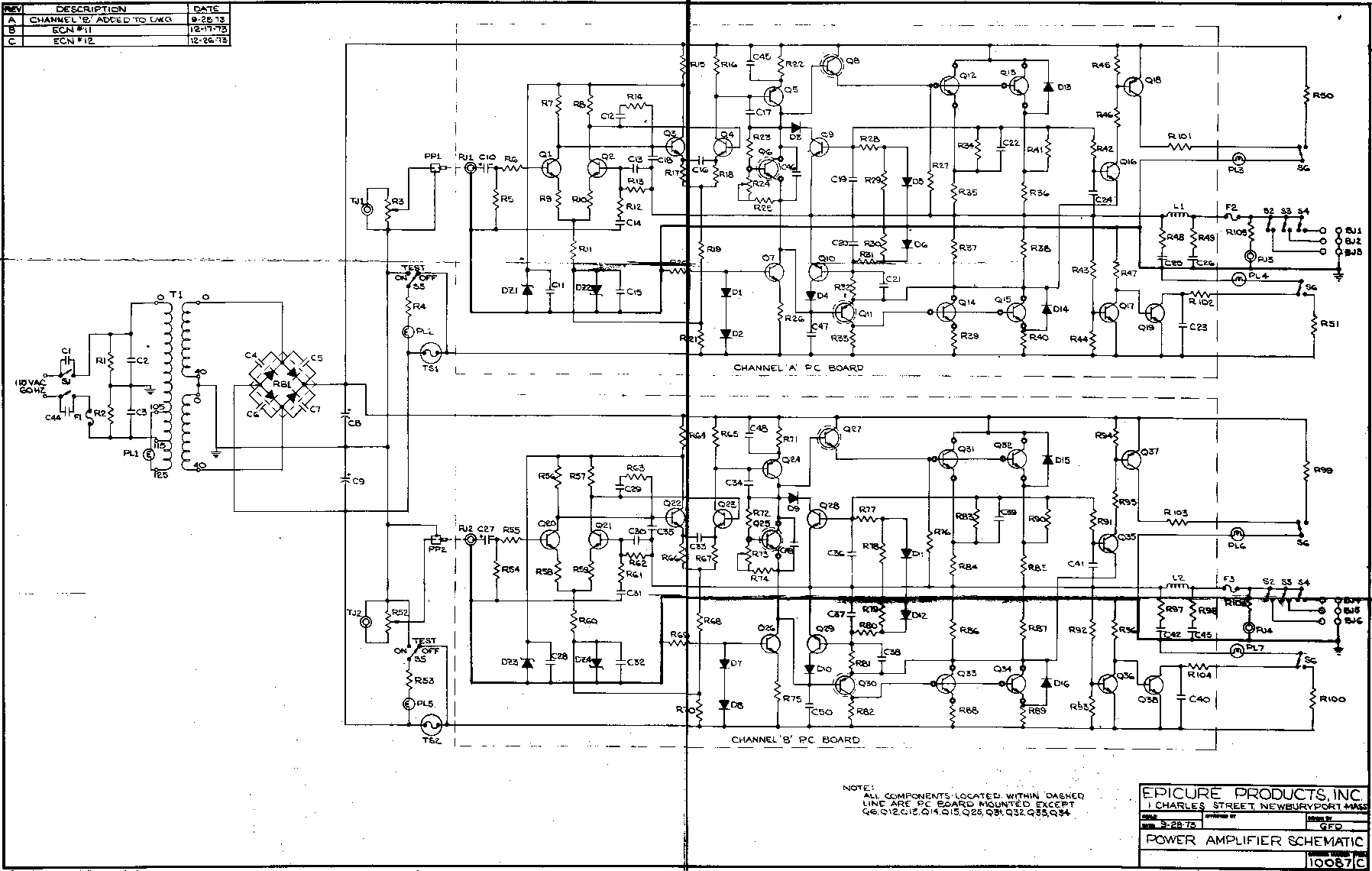

This schematic is from the original owner's manual package:
(Click on image for a larger, legible version)
