EPI & Epicure Speakers:
The EPI Magnus A11 and A1100

identical specifications - crossover schematic - order parts

(this is a brochure photograph, a current owner's example is below)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 22 7/8" x 12 7/8" x 11 1/2"
Weight: (unknown)
Response: 40 to 20k Hz
RMS Power: 10 to 110 watts
Crossover: 500 and 4k Hz
Sensitivity92 dB/1 watt/1 meter
10" wooferPRO 058$61.00 each
6" midrangePRO 060$56.00 each
Horn tweeterPRO 061$63.00 each
Impedance:4 ohms
MSRP:400.00(Magnus A11)
Built:1985-6(Magnus A11)

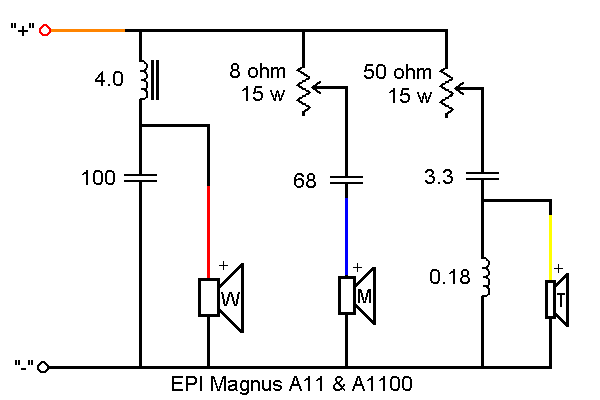

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

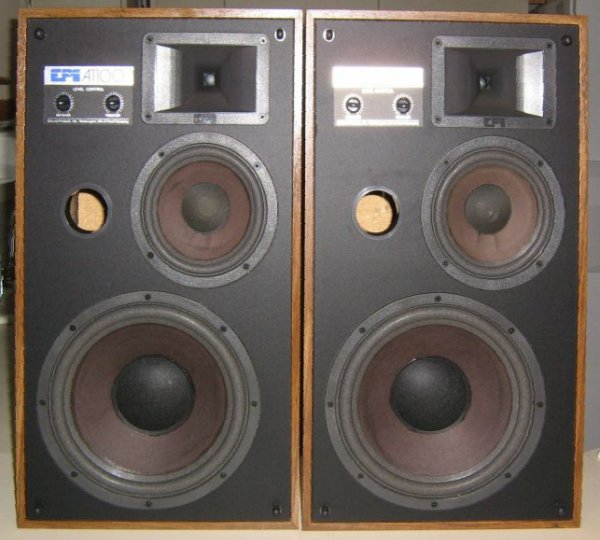

(Photo courtesy of an anonymous eBay seller)

* * *
