EPI & Epicure Speakers:
The EPI Magnus A10

specifications - crossover schematic - order parts

(photo courtesy of eBay seller auctionmaster_ca)

Specifications

photo/top - crossover schematic - order parts

Dimensions: 22 7/8" x 12 7/8" x 11 1/2"
Weight: (unknown)
Response: 45 to 20k Hz
RMS Power: 10 to 100 watts
Crossover: 4000 Hz
Sensitivity91 dB/1 watt/1 meter
10" wooferPRO 058$58.00 each
Horn tweeterPRO 061$51.00 each
Impedance:4 ohms
MSRP:320.00
Built:1985-6

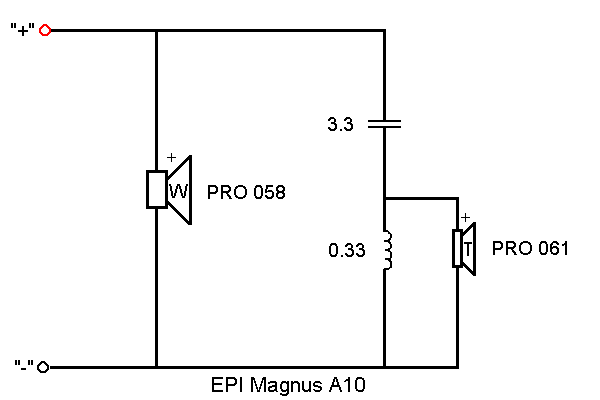

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
