Advance Speakers
Model A and A-II

"Advance Speaker Korp" operated out of Hampton N.H., probably in the early 1980's. I have seen or heard of several examples of these. The information and photographs here are from original brochures. They closely resemble the Genesis 20.

The A-II used an 8" woofer and 10" passive radiator, for which I build exact replacements. The tweeter was a fairly standard soft dome imported from Europe.

specifications - crossover schematic - order parts


This is the "A". The "A-II" is shown below, along with the "A" brochure text.


photo/top - specifications - crossover schematic - order parts

Height26-1/2"
Width14-1/2"
Depth10-1/2"
Shipping weight44 pounds
FinishOiled walnut or walnut vinyl
Tweeter1" soft domePRO 002 MP$54.00
Woofer 8" long throwPRO 001$59.00
Passive radiator10" PRO 014$39.00
Crossover freq.2000 Hz, 55 Hz acoustic ACC 004 B$38.00
Sensitivity90 dB, 1w at 1m
Frequency response30 Hz to 20 kHz, +/- 4 dB
Power handling100 watts/ch
Minimum power15 watts/ch
Impedance8 ohms nominal, 6 ohms min.


photo/top - specifications - crossover schematic - order parts

(maybe I will have this up here soon?)

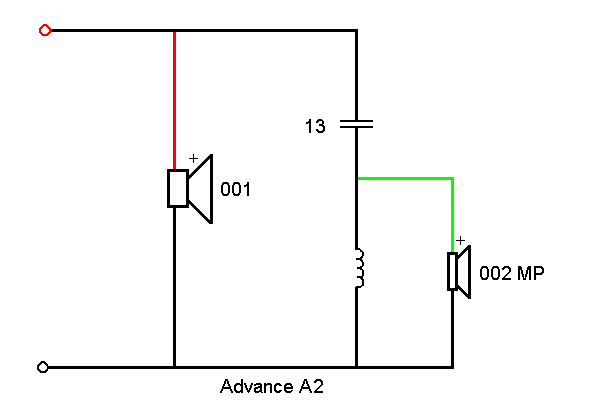

Key to Crossover Symbols and Component Values (in a new window)


(Brochure scan, click for full-size)

* * *
