Genesis Physics Speakers:
Model 7 Information

specs - crossover schematic - order parts: Original or Series 2

(Original shown, Series 2 is oak vinyl with a brown grill)

Specifications

photo/top - crossover schematic - order parts: Original or Series 2

Dimensions16" x 11.75" x 5.7"
Weight10.5 lbs

Original:

Finishteak vinyl
Tweeter: 0.5" polycarbonate dome ("TW69A")PRO 013$17.00
Woofer: 6" treated fiber ("C17W6-29")PRO 012$37.00
Crossover frequency2500 Hz
Sensitivity, 1w at 1m90 dB
Frequency response60 Hz to 20 kHz
Recommended amplifier power15 - 60 watts/ch
Impedance8 ohms

Series 2:

Finishoak vinyl
Tweeter: 0.5" polycarbonate domePRO 013$17.00
Woofer: 6" polypropylenePRO 012$37.00
Crossover frequency2500 Hz
Sensitivity, 1w at 1m90 dB
Frequency response60 Hz to 20 kHz
Recommended amplifier power10 - 60 watts/ch
Impedance8 ohms

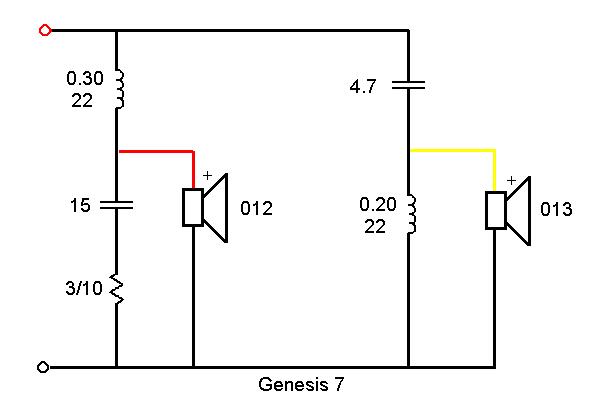

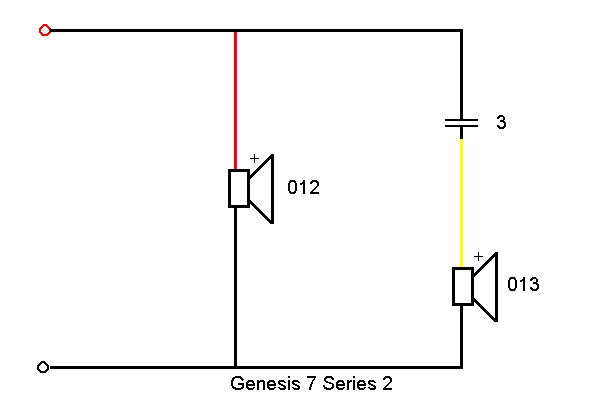

Crossover schematic

photo/top - specifications - order parts: Original or Series 2
Key to Crossover Symbols and Component Values (in a new window)

* * *
