EPI & Epicure Speakers:
The EPI M90

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions: 21" x 11" x 9"
Weight: 25 lbs
Response: 45 to 18k Hz
RMS Power: 12 to 50 watts (very conservative rating)
Crossover: 1800 HzACC 004 A$30.00 each
8" wooferPRO 001$59.00 each
1" air spring dome tweeterPRO 002$54.00 each
Complete rebuild kitK-81E$298.00 / pair
Impedance:8 ohms
MSRP:180.00
Built:1974-77

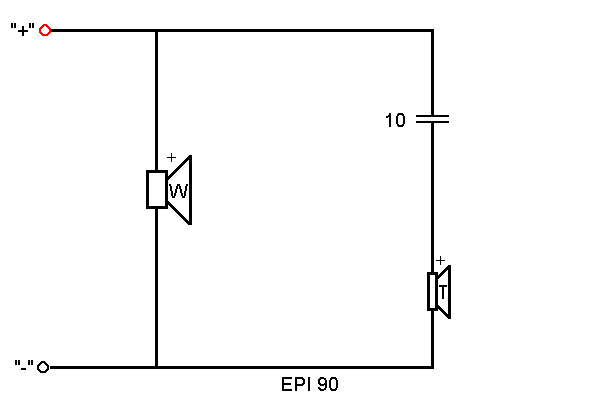

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
