Norman in Auckland acquired a pair of woofers and tweeters that I built in 1996 earlier in 2015. These are the speakers he built with them.

He says:

"I tried to keep the cost down as the priority is the good music from them, and yes, they are sounding brilliantly in my small room."

"I designed a truncated pyramid more or less like a trapezoid, inspiration from the Epicure 3.0 and one of the pics at your site. No sides are 90 degree corners, baffles are 15 degrees and the rest 5 degrees with respect to vertical. They have a volume of 14 liters, less minimal bracing. I used 18mm MDF, with 2mm thick black rubber foam found at craft stores to line the inside bottom/top/back/braces, and pillow filling. For the finish, I used black leatherette to cover the front/top/bottom and plastic vinyl with wood design for the sides and spray painted the back black. I would like to redo the side plastic vinyl once I get the chance on real wood veneer."

Here he is test-fitting all the pieces of MDF:

HUMAN 61 kit photo 1

They have been glued together and sanded, and are ready for the various finishes.

HUMAN 61 kit photo 2

This shows the binding posts terminals he used on the rear, and you can note that every vertical panel is angled inwards:

HUMAN 61 kit photo 3

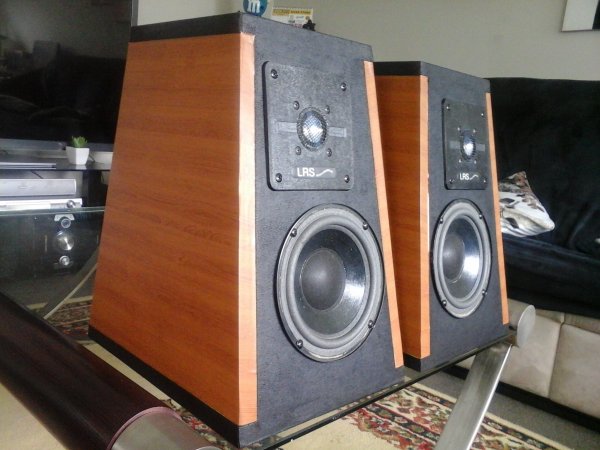

And, finally, a nice photograph showing them both from the front:

HUMAN 61 kit photo 4

* * *
